Nut with toothed collar DIN 6923 M8 |08| zinc

Product detailed description

The nut with a serrated collar according to DIN 6923 and ISO 4161 is a hexagonal nut with an integrated serrated collar, which ensures a reliable hold and prevents the joint from loosening spontaneously. This type of nut is designed for applications where the use of a washer is not required, which simplifies the assembly process and reduces the number of components required.

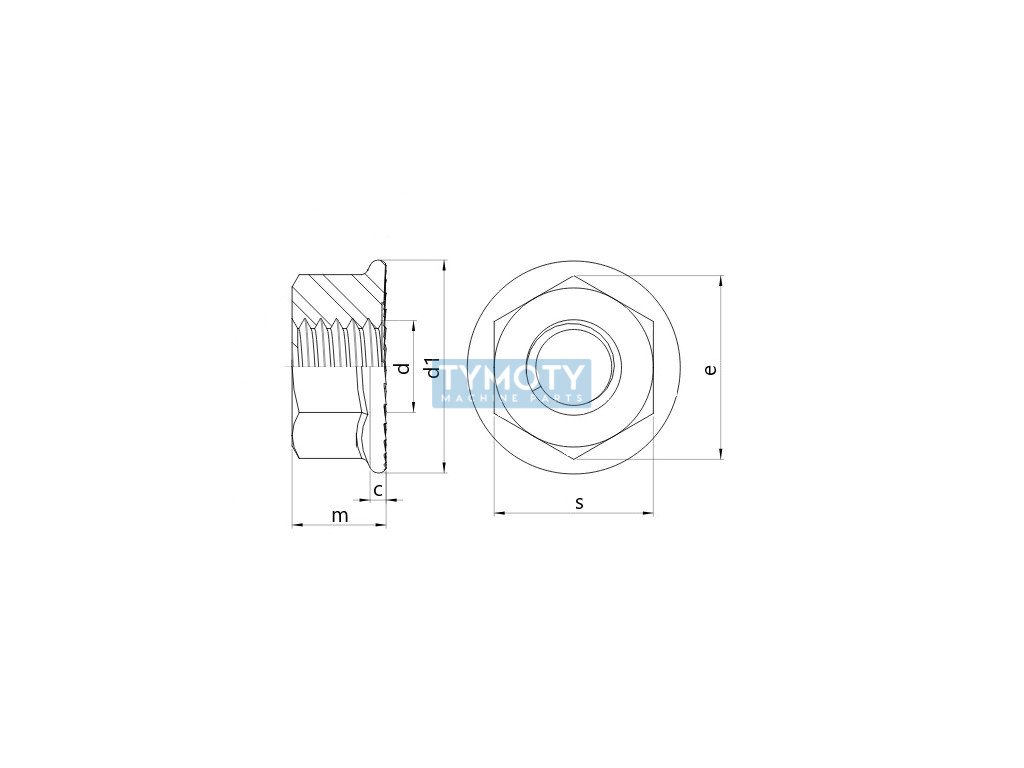

The nut has a metric M8 thread with a pitch of 1.25 mm, which is the standard thread for this diameter. The diameter of the nut is 17.9 mm, the height is 8 mm and the width between the surfaces (s) is 13 mm. The width c, which indicates the thickness of the serrated collar, is 1.2 mm, while the width e, which is the distance between the opposite corners, is 14.38 mm.

It is made of steel of strength class 8, which guarantees high resistance to mechanical stress and durability of the joint. The zinc-plated surface treatment provides corrosion protection, increasing the service life of the nut in various operating conditions.

This nut is suitable for use in various industrial sectors where high connection reliability and vibration resistance are required. Its design allows for effective pressure distribution over a larger area, reducing the risk of damage to the materials being joined.
