Nut with toothed collar DIN 6923 M5 |08| zinc

Product detailed description

The nut with a serrated collar according to DIN 6923 and ISO 4161 is a hexagonal nut designed for metric threads with a diameter of M5. This type of nut is made of steel with a strength class of 8, which guarantees high resistance to mechanical stress. The surface treatment is made of white zinc plating, which provides protection against corrosion and increases the service life of the component in difficult operating conditions.

The nut has a serrated collar, which ensures better adhesion and prevents spontaneous loosening of the joint. This design eliminates the need for a washer, which simplifies assembly and reduces the number of components required. The serrations on the collar increase the friction between the nut and the surface to which it is applied, which is particularly advantageous in applications with vibrations or dynamic loads.

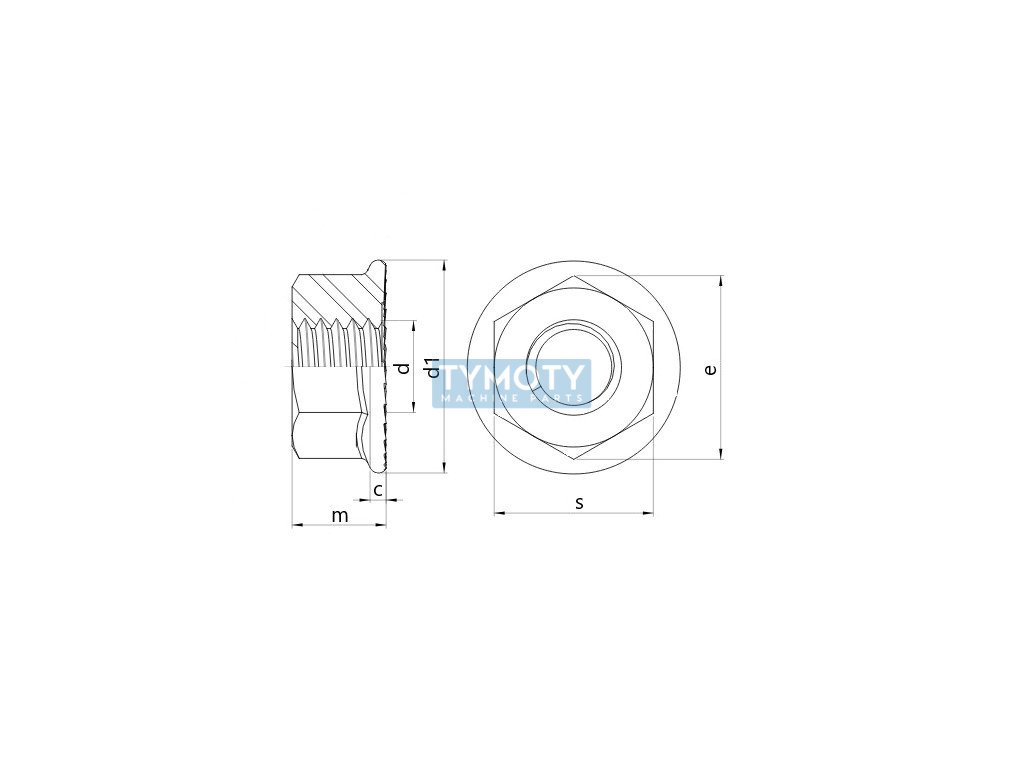

The geometric parameters of the nut include a diameter d1 of 11.8 mm, a height m of 5 mm, a width s of 8 mm and a width e of 8.79 mm. Width c is 1 mm. The thread type is metric with a pitch of 0.80 mm, which is standard for this size.

This nut is suitable for various applications in engineering and industry, where it is necessary to ensure a reliable and tight connection without the risk of loosening. Due to its properties, it is ideal for use in the automotive industry, engineering and other industries where high strength and reliability of connections are required.
