Nut with collar DIN 6923 M6 |10|

Product detailed description

The hexagonal nut with collar according to DIN 6923 and ISO 4161 is specifically designed for applications where it is necessary to ensure a reliable connection without the use of a washer. The nut has a metric M6 thread with a pitch of 1.00 mm, which is standard for this type of thread. The collar on the nut increases the contact surface, effectively distributing the pressure over a larger area, which reduces the risk of damage to the material to which the nut is attached. This design also contributes to reducing the loosening of the connection when exposed to vibrations.

The nut is made of steel with a strength class of 10, which guarantees high mechanical resistance and the ability to withstand significant loads. The surface treatment is not applied, which means that the nut is in the raw state of the steel, which can be advantageous in applications where subsequent surface treatments are required according to specific project requirements.

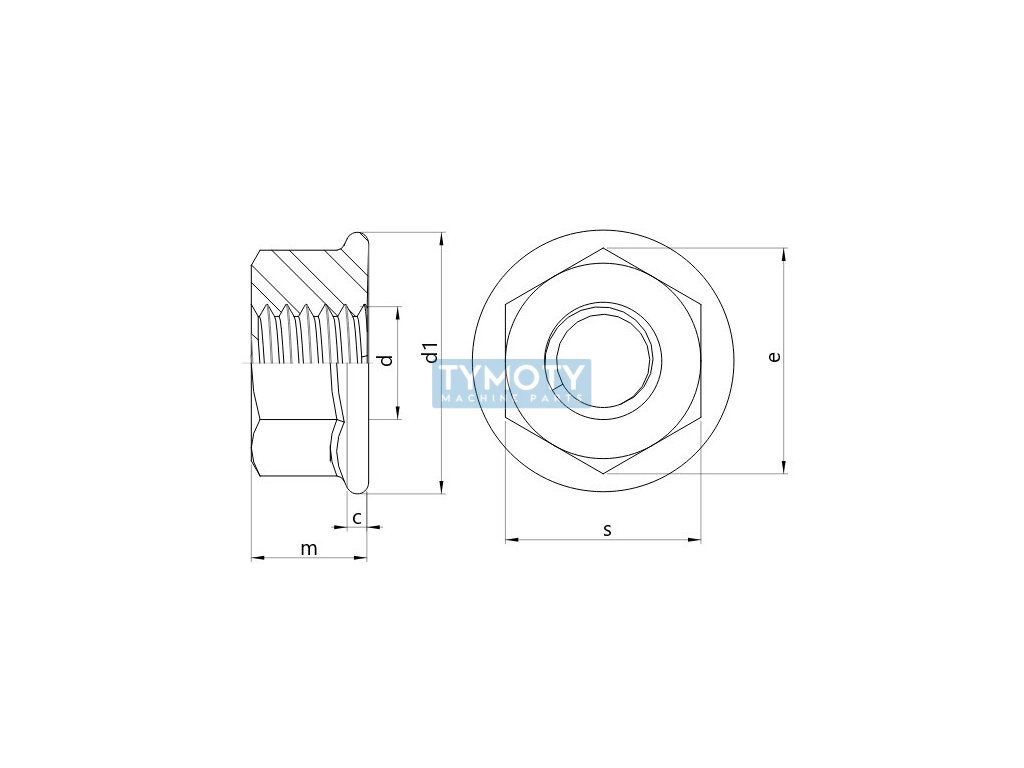

The dimensions of the nut are as follows: diameter d is M6, outer diameter of the collar d1 is 14.2 mm, nut height m is 6 mm, width across the faces s is 10 mm, width across the corners e is 11.05 mm and collar width c is 1.1 mm. These dimensions are in accordance with DIN 6923, ISO 4161 and EN 1661 standards, which ensures compatibility and versatility of use in various structural applications.

This nut is ideal for use in various industrial sectors where high joint strength and resistance to dynamic loads are required, such as the automotive industry, mechanical engineering and construction.
