Nut with collar DIN 6923 M5 |10|

Product detailed description

The DIN 6923 M5 collar nut is a hexagonal collar nut that meets the standards DIN 6923, ISO 4161 and EN 1661. This nut is made of steel with a strength class of 10, which guarantees high resistance to mechanical stress. The surface treatment is not applied, which means that the nut is supplied without a surface treatment and is therefore suitable for applications where additional corrosion protection is not required.

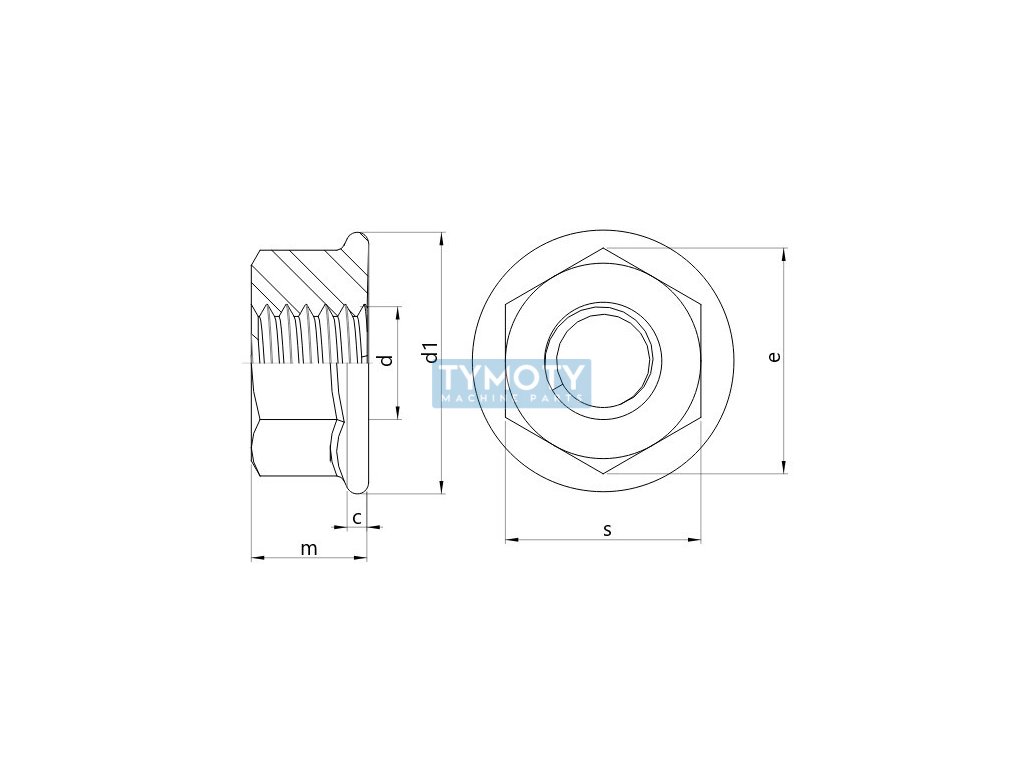

The nut has a metric thread with a diameter of M5 and a pitch of 0.80 mm. The diameter d1 is 11.8 mm, the height m is 5 mm, the width s is 8 mm, the width c is 1 mm and the width e is 8.79 mm. These dimensions correspond to the standardized values for this type of nut, which allows them to be used in a wide range of applications.

The collar on the nut increases the contact surface and effectively distributes the pressure over a larger area, reducing the risk of damage to the material to which the nut is attached. This design feature allows the nut to be used without additional washers, which simplifies assembly and reduces the risk of the joint loosening when exposed to vibration.

The DIN 6923 M5 collar nut is ideal for applications where it is necessary to ensure a strong and reliable joint without the use of washers, while providing sufficient resistance to dynamic loads. It is suitable for use in various industries, including mechanical engineering, automotive and construction, where precision and reliability of joints are important.
