Nut with collar DIN 6331 M6 |10|

Product detailed description

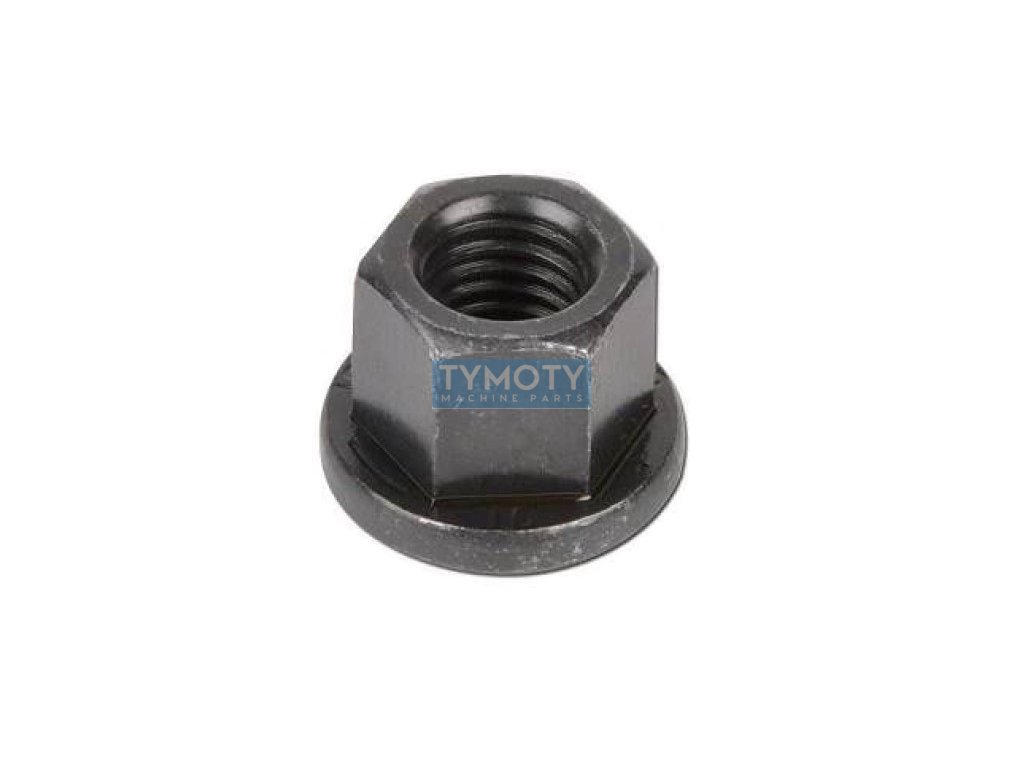

The DIN 6331 collar nut is a hexagonal high nut designed for applications requiring high strength and reliability. This particular model has a metric M6 thread, which means that the outer diameter of the thread is 6 mm. The height of the nut is 1.5 times the diameter of the thread, namely 9 mm, which increases its strength and stability under load.

The nut is made of steel with a strength class of 10, which indicates high resistance to mechanical stress and is suitable for heavy machine joints where repeated loading is expected. The surface treatment is not applied, which can be an advantage in applications where it is necessary to preserve the natural properties of the steel or where additional treatment is planned.

The hexagonal shape of the nut with a dimension between the surfaces (width s) of 10 mm and a dimension between the diagonals (width e) of 11.05 mm allows easy handling using standard tools. The collar on the underside of the nut provides a larger contact surface, which increases the stability of the connection and reduces the risk of damage to the material to which the nut is applied.

This type of nut is ideal for use in industrial applications where high demands are placed on the strength and reliability of the connections, such as machine and equipment construction, where it is necessary to ensure a strong and stable connection of components.
