Nut trapezoidal square left thread DIN 103 Tr20x4 bronze

Product detailed description

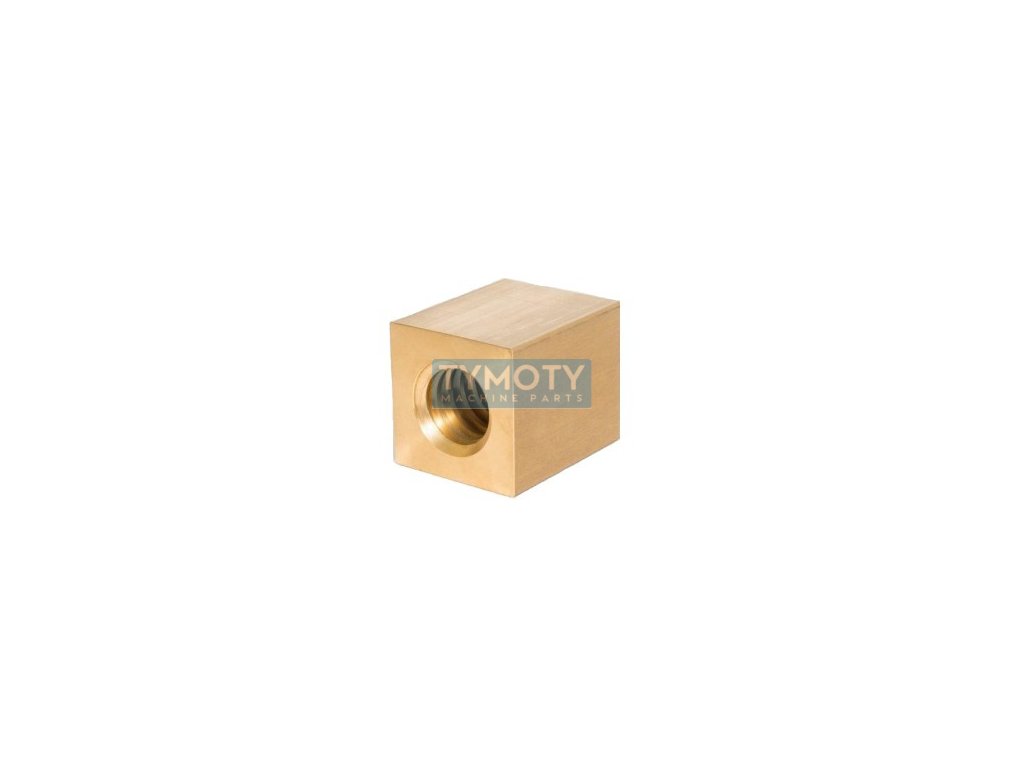

Bronze square nut with left-hand trapezoidal thread according to DIN 103 is designed for applications where reliable and precise motion transmission is required. This component is made of bronze, which guarantees high wear resistance and excellent sliding properties, ideal for applications with high loads and low speeds. The trapezoidal thread with dimensions Tr20x4 is characterized by its robustness and ability to transmit high axial forces. The left-hand thread is specific for applications where the opposite direction of motion is required, for example in lifting mechanisms or adjustment systems.

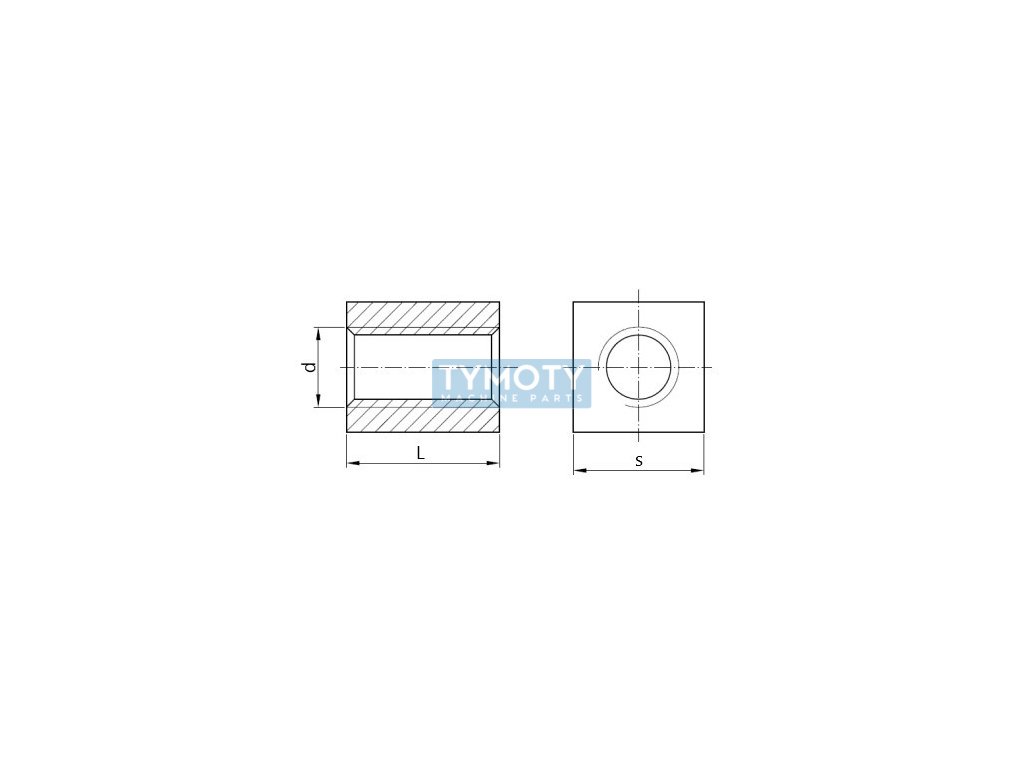

The nut has a thread diameter of 20 mm and a pitch of 4 mm, which allows for precise adjustment and reliable force transmission. The total length of the nut is 50 mm, while its width is 40 mm, which provides sufficient stability and support for the threaded rod. The surface treatment is not applied, which is common for bronze components, as the material itself provides sufficient protection against corrosion. This nut is ideal for use in industrial applications where long-term reliability and precision of mechanisms are required.
