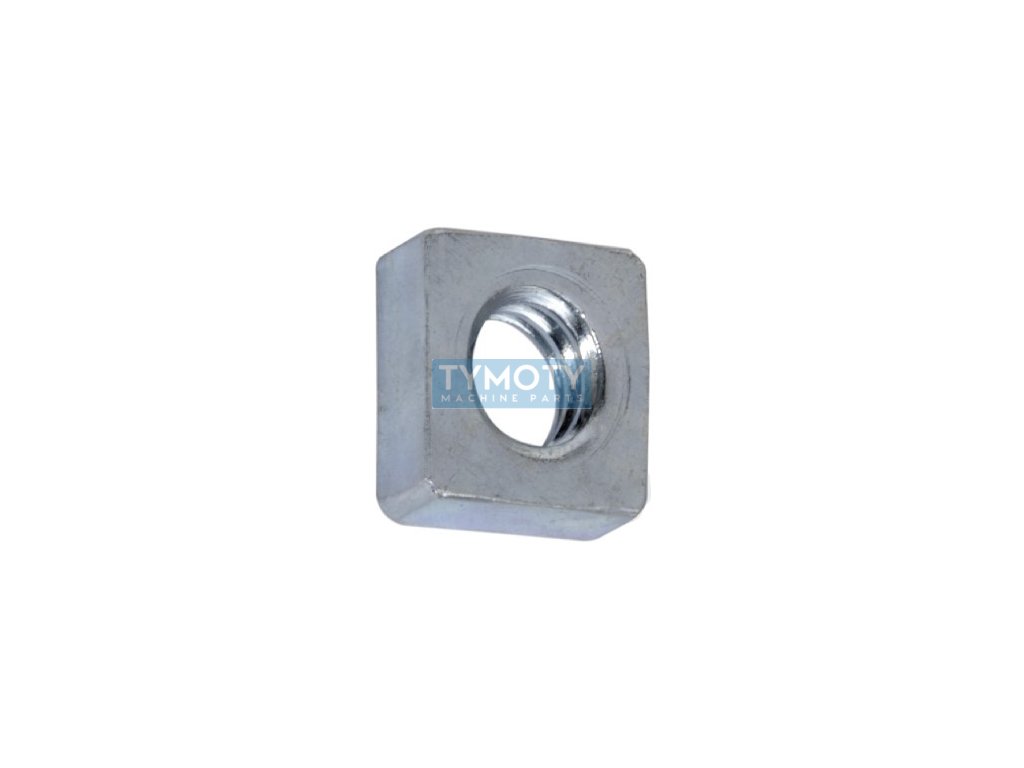

Nut square low DIN 562 M10 galvanized

Product detailed description

The DIN 562 M10 square low nut is intended for applications where a compact solution with limited space is required, or as a lock nut. This nut is made of steel with strength class 4, which makes it suitable for less demanding screw connections. The surface treatment is white zinc plating, which provides basic protection against corrosion.

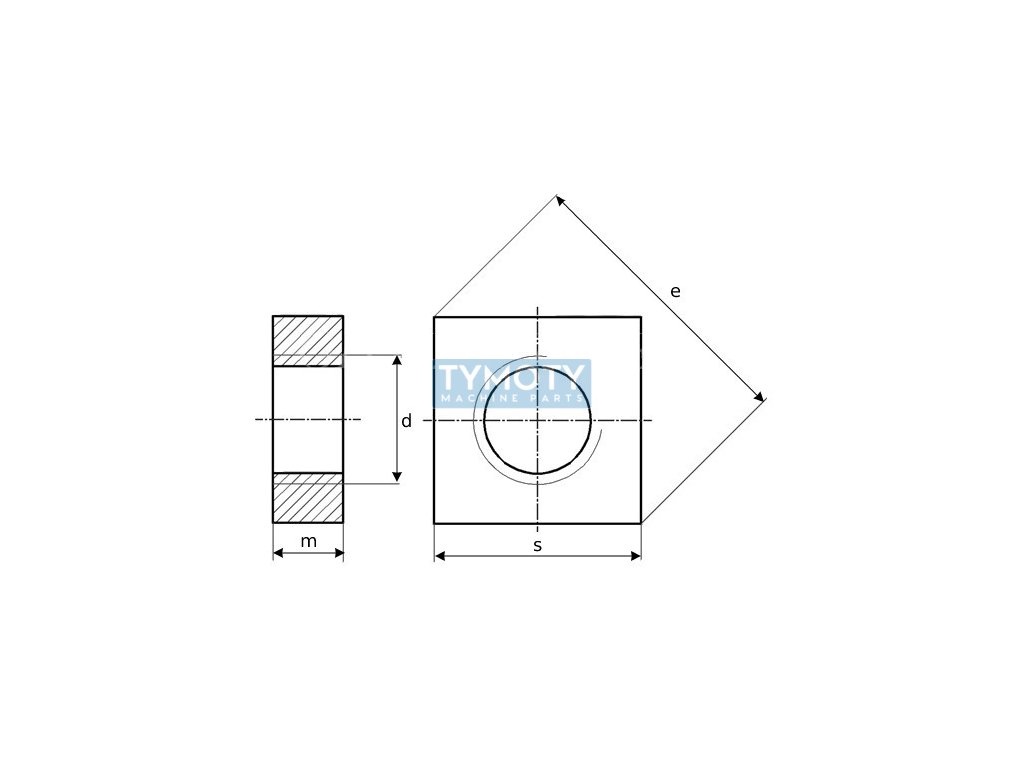

The DIN 562 standard and the equivalent ČSN 021416 define the dimensions and properties of this nut. The nut has a metric M10 thread with a pitch of 1.50 mm. The width of the nut across the surfaces (s) is 17 mm, while the width across the edges (e) reaches 18.9 mm. These dimensions are optimized for use in space-constrained conditions where the height of the fastener needs to be minimized.

This nut is suitable for use in situations where a reliable connection with minimal height is required, such as in electronic equipment, mechanical engineering applications, or in structures where there is not enough space for standard nuts. The zinc-plated finish increases corrosion resistance, which is important for applications in environments with higher humidity or outdoors.
