Nut low DIN 439B M24x2.00 |04|

Product detailed description

Low nut DIN 439B M24x2.00 is a hexagonal nut manufactured according to the standards ČSN 021403, DIN 439B and ISO 4035. This nut is characterized by its low structural height, which is 12 mm, which makes it suitable for use in assemblies with limited space. Thanks to its design, it can also be used as a lock nut, which provides additional securing of the connection.

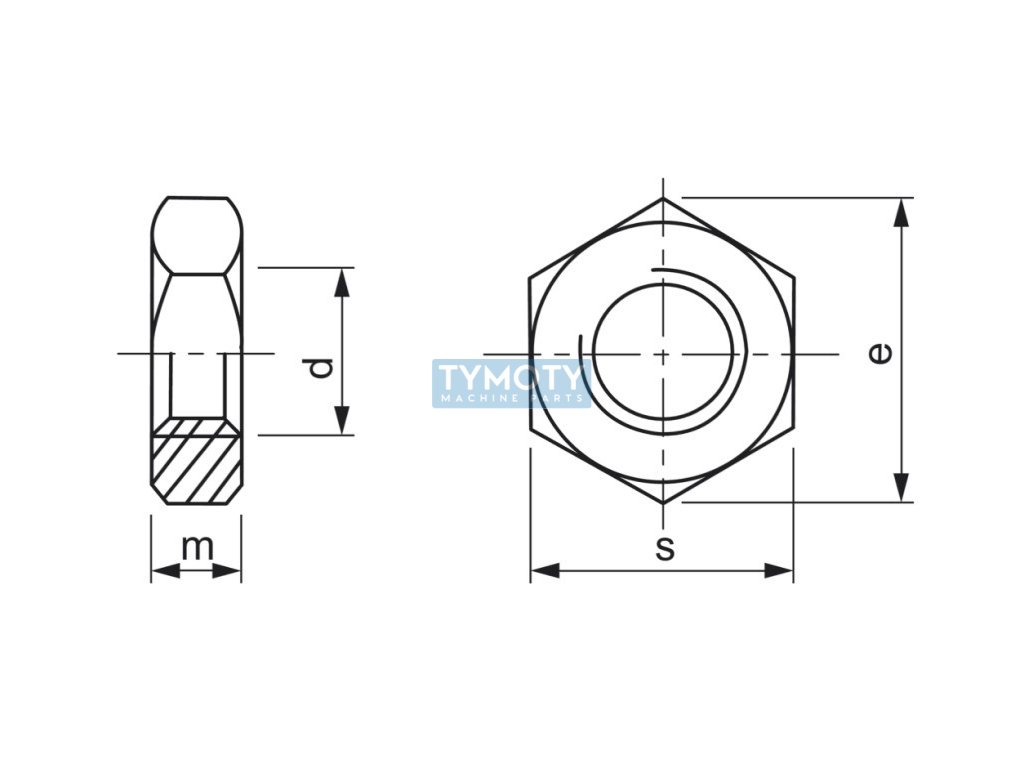

The nut has a metric fine thread with a diameter of M24 and a pitch of 2.00 mm. The fine thread is suitable for applications where higher precision and strength of the connection is required. The width between the opposing surfaces of the nut (width s) is 36 mm, while the width e, which is the distance between two opposing corners, is 39.55 mm.

The material used to manufacture this nut is steel with strength class 4, which means that the nut is suitable for less demanding applications where high strength requirements are not imposed. The surface treatment is not applied, which means that the nut is in a raw state without protection against corrosion. Therefore, it is advisable to consider its use in an environment where it will not be exposed to corrosive influences.

This nut is ideal for use in various industrial sectors where a reliable and precise connection with limited space for assembly is required. Its design and material properties predetermine it for use in less demanding applications where high resistance to corrosion or extreme mechanical loads is not required.
