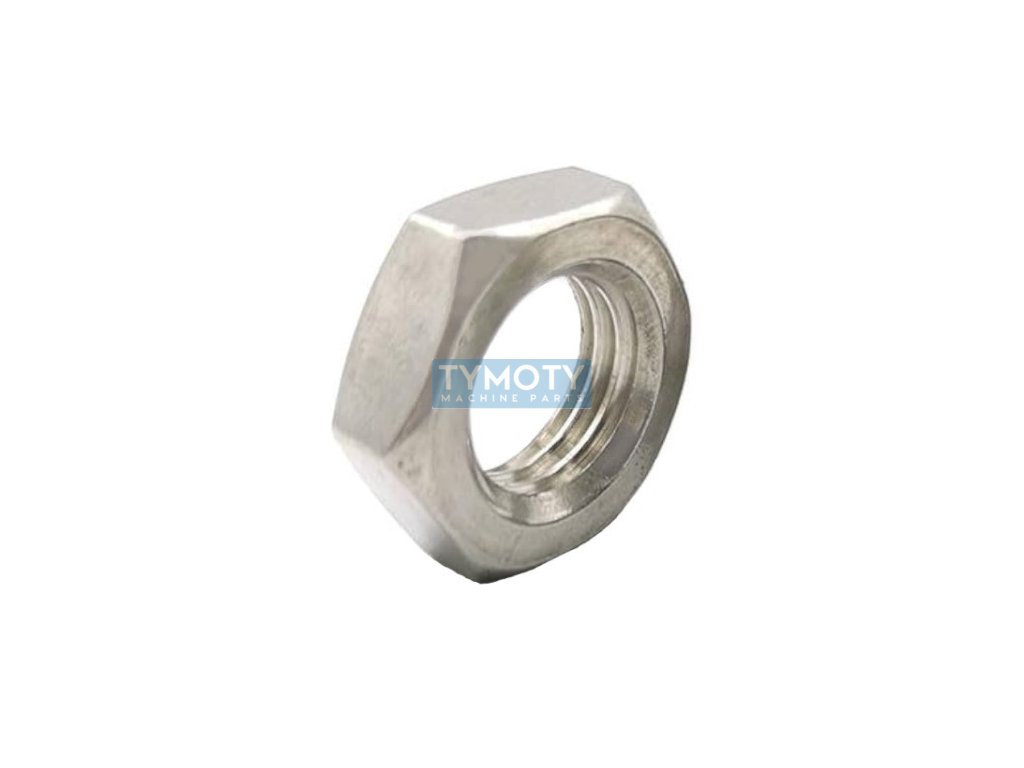

Nut low DIN 439B M16x1.50 stainless steel A4

Product detailed description

The low nut M16x1.50 according to DIN 439B is made of A4 stainless steel, which ensures its high corrosion resistance and suitability for use in harsh environments, including the chemical industry and marine environments. This nut is hexagonal in shape, which allows easy handling using standard tools.

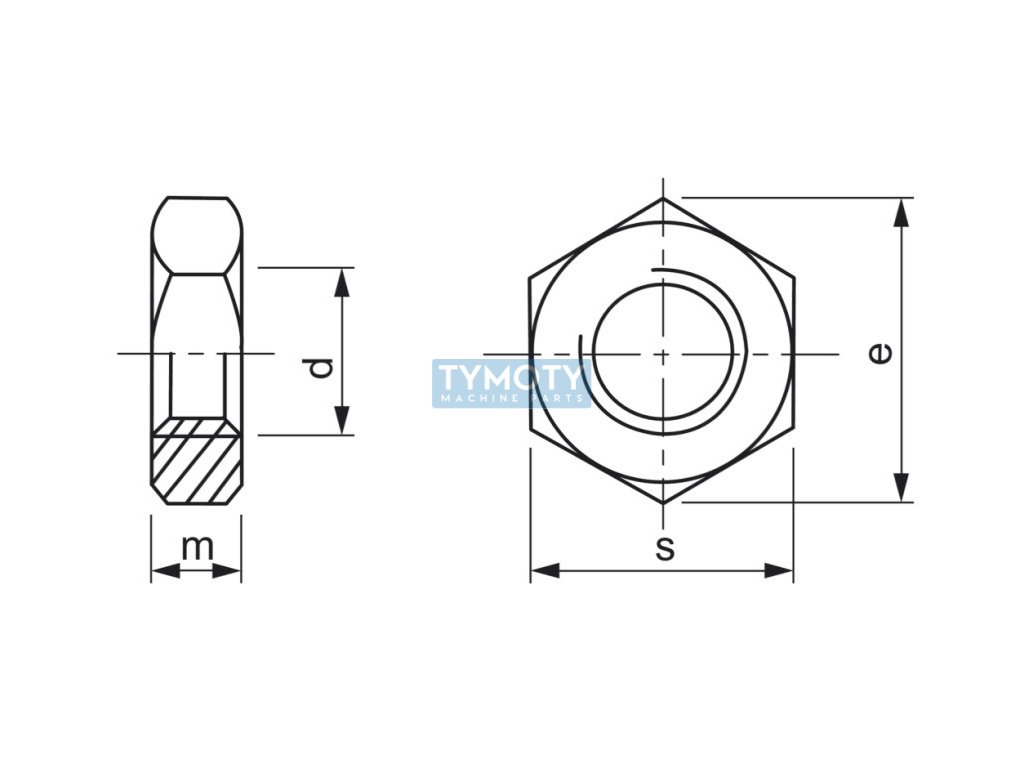

With a metric fine thread M16x1.50 and a pitch of 1.50 mm, it is ideal for applications where higher precision and joint strength are required. The height of the nut is 8 mm, the width between opposing surfaces (s) is 24 mm and the width between opposing peaks (e) is 26.75 mm. These dimensions are optimized for use in limited spaces where a low profile design is required.

The nut is without a chamfer, which reduces its overall height and allows it to be used as a lock nut, providing additional joint security. ISO 8675 and ČSN 021403 standards ensure that the nut meets international quality and dimensional standards. No surface treatment is applied, which is typical of stainless steel materials that naturally resist corrosion.

This nut is suitable for a wide range of applications where high corrosion resistance and joint accuracy are required, while its low profile allows for use in space-constrained conditions.
