Nut low DIN 439B M12x1.50 |04|

Product detailed description

Low nut DIN 439B M12x1.50 is a hexagonal low nut with a fine metric thread, manufactured according to the standards ČSN 021403, DIN 439B and ISO 4035. This nut is made of steel of strength class 4, which predetermines it for use in applications where high demands are not placed on the strength of the connection. The nut has no surface treatment, which means that it is suitable for use in environments where increased corrosion resistance is not required.

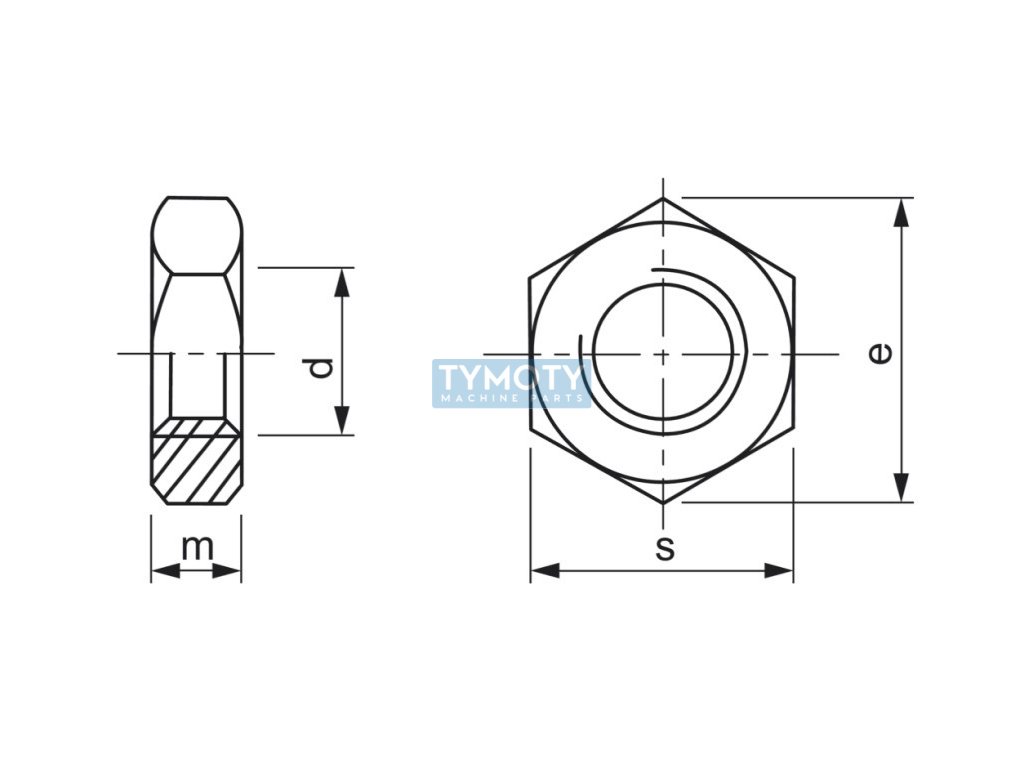

The dimensions of this nut are as follows: the thread diameter is M12 with a fine pitch of 1.50 mm, the height of the nut is 6 mm, the width between the opposing surfaces (s) is 19 mm and the width between the diagonals (e) is 21.1 mm. Thanks to its low construction height, this nut is ideal for installations in limited space. In addition, it can also serve as a lock nut, which provides additional securing of the connection.

This type of nut is often used in mechanical engineering and industrial applications, where it is necessary to ensure a reliable connection in a compact space. The nut is compatible with other components according to DIN 439-2 and ISO 8675 standards, which guarantees its wide range of uses in various technical assemblies.
