Nut low DIN 439B M12 |04|

Product detailed description

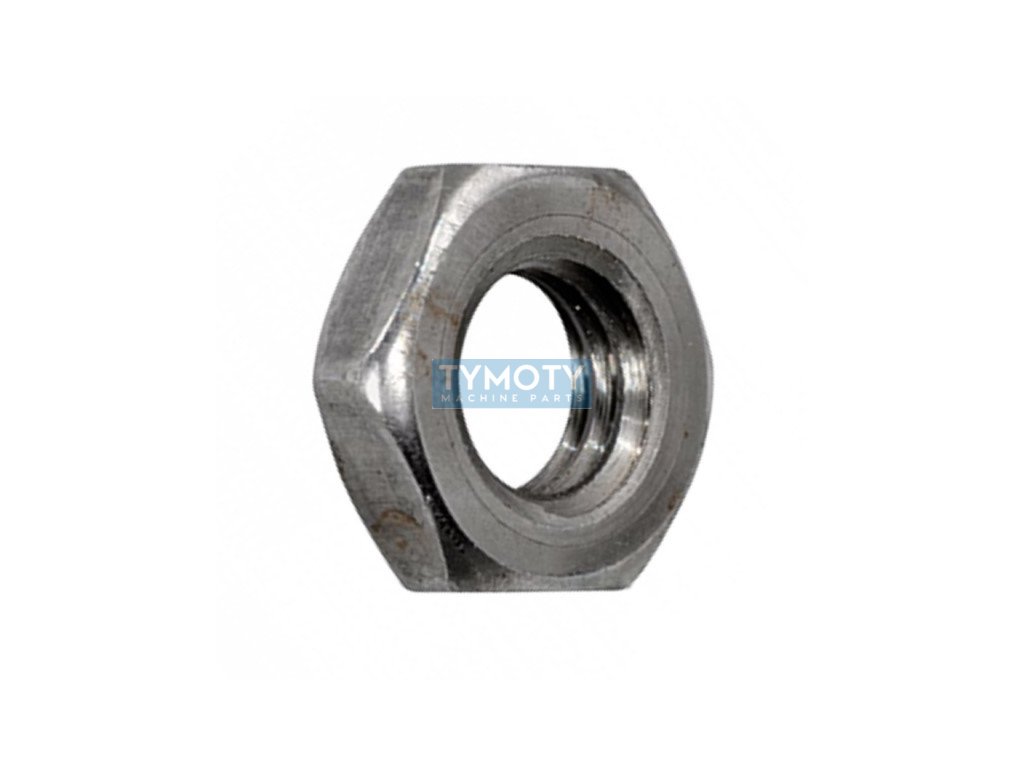

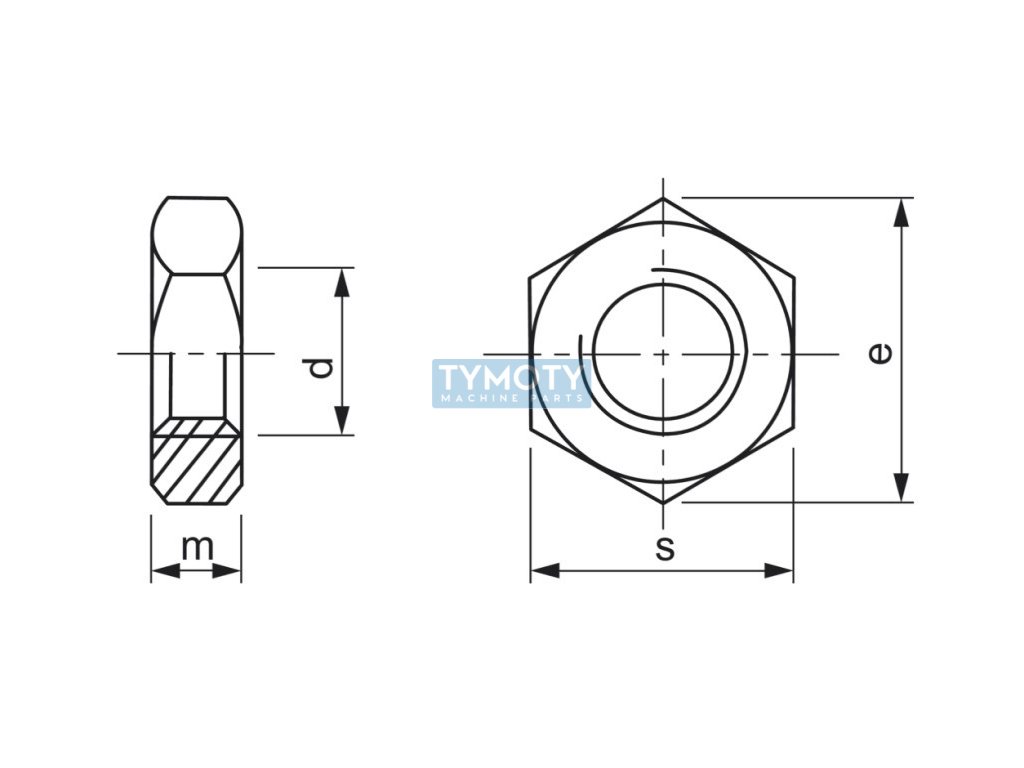

Low nut DIN 439B M12 is a hexagonal nut manufactured according to the standards ČSN 021403, DIN 439B and ISO 4035. This nut is characterized by its low height, which is 6 mm, which makes it suitable for use in applications with limited space. Its width across the surfaces (s) is 19 mm and the width across the edges (e) is 21.1 mm, which guarantees a stable fit during assembly.

The nut is equipped with a metric M12 thread with a pitch of 1.75 mm, which is a standard pitch for this thread diameter. The material is steel with strength class 4, which means that the nut has a basic level of strength, suitable for less demanding applications where high demands are not placed on mechanical loads.

This nut has no surface treatment, which means that it is without corrosion protection and is suitable for use indoors or in environments where it is not exposed to aggressive influences. Due to its low design, it is also often used as a lock nut, which provides additional security for threaded connections.

The nut is without a chamfer, which means that its edges are not beveled, which can be important in certain types of assemblies where maximum use of the nut surface is required. Due to its design features and the standards according to which it is manufactured, this nut is suitable for a wide range of applications in mechanical engineering and construction, where a reliable and simple connection is required.
