Nut low DIN 439B M10x1.25 |04|

Product detailed description

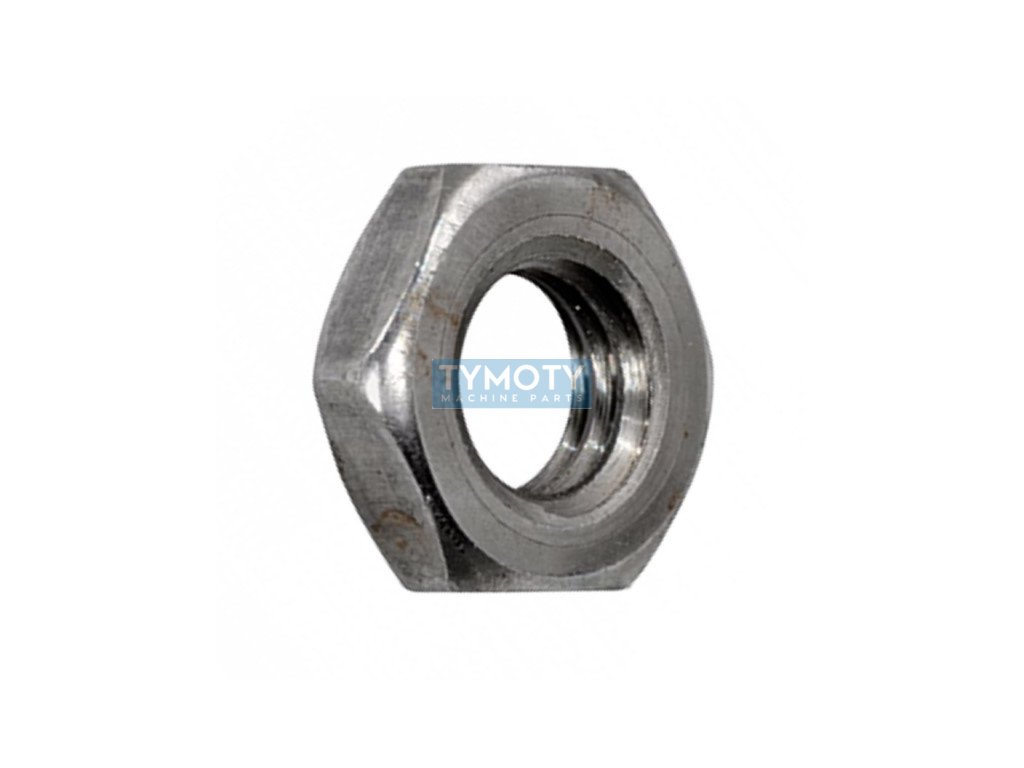

Low nut DIN 439B M10x1.25 is a hexagonal nut manufactured according to the standards ČSN 021403, DIN 439B and ISO 4035. This nut is characterized by its low height, which is 5 mm, which makes it suitable for use in applications with limited space. It is also suitable as a lock nut, which ensures reliable fastening in structures where it is necessary to prevent spontaneous loosening of joints.

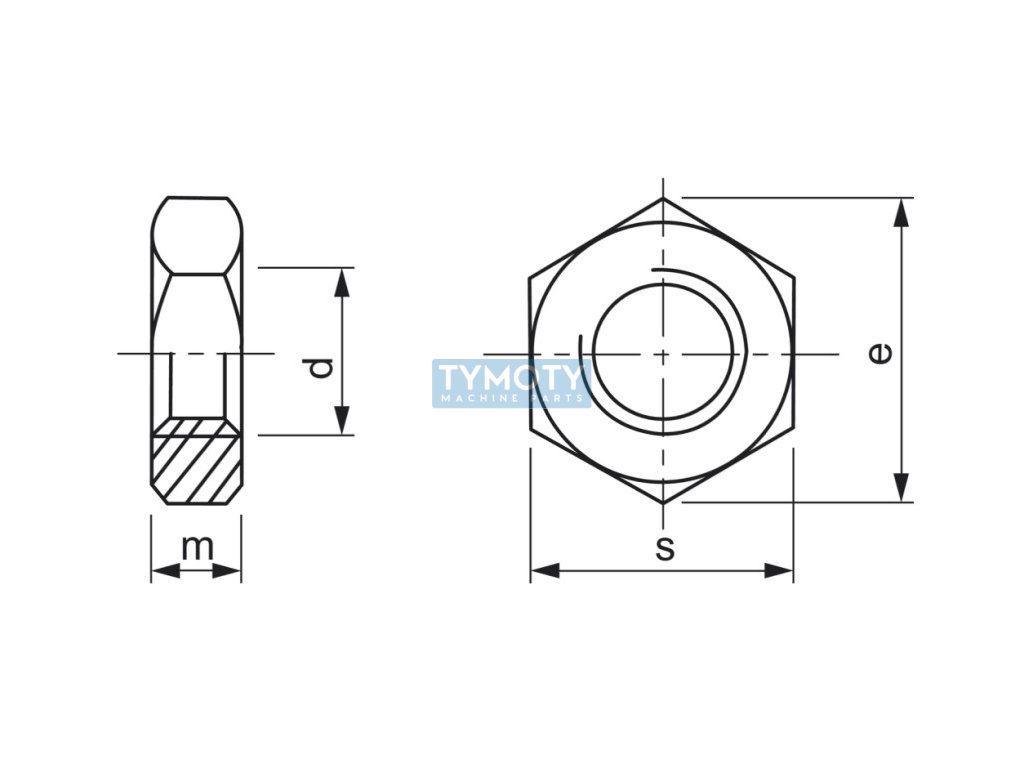

The nut has a metric fine thread with a diameter of M10 and a pitch of 1.25 mm. The fine thread allows for more precise adjustment and higher resistance to vibrations compared to conventional metric threads. The width of the nut between the opposing faces (s) is 17 mm and the width between the opposing corners (e) is 18.9 mm, which provides sufficient surface area for the application of torque during assembly.

The material used to manufacture this nut is steel with a strength class of 4, which means that the nut is suitable for applications with lower mechanical demands. The nut is supplied without surface treatment, which must be taken into account when used in environments with higher humidity or aggressive chemicals, where additional corrosion protection may be required.

This nut is part of the fine thread hexagonal nuts group and is comparable to the ISO 8675 standard. It is ideal for use in mechanical engineering, the automotive industry and other industries where reliable and precise connection of components is required.
