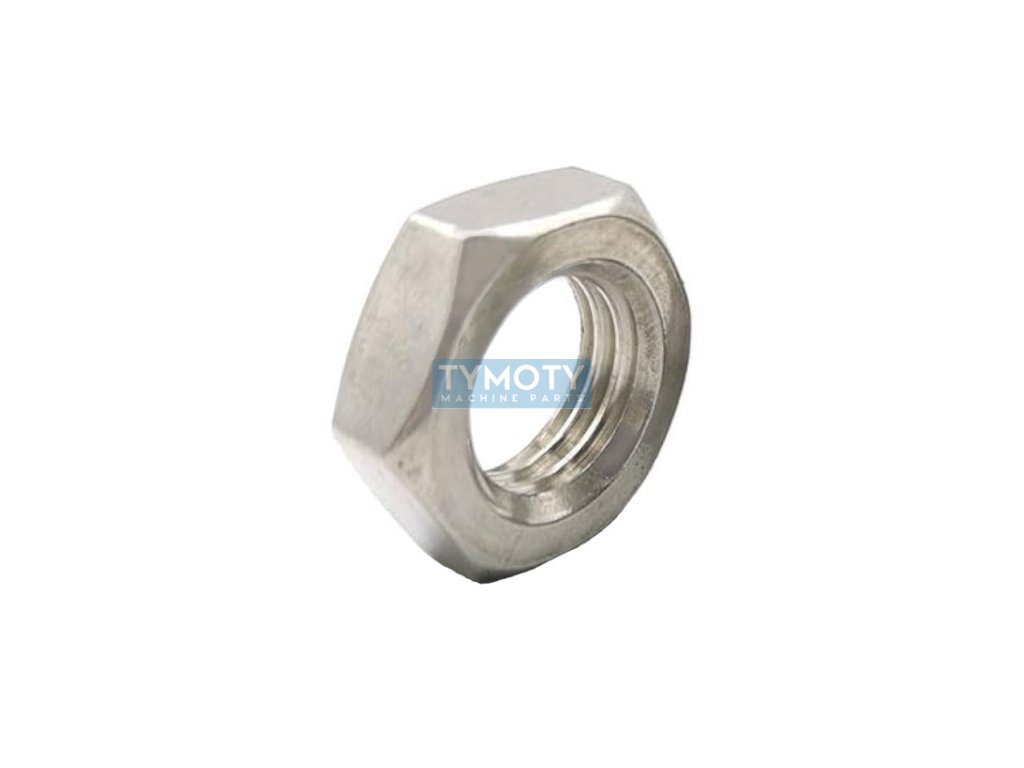

Nut low DIN 439B M10x1.00 stainless steel A4

Product detailed description

Low nut DIN 439B M10x1.00 made of A4 stainless steel is a hexagonal connecting component designed for applications where it is necessary to minimize the height of the connecting element. This nut is manufactured according to the standards ČSN 021403, DIN 439B and ISO 4035, which guarantees its compatibility and standardized dimensions for wide use in industry.

The nut has a metric fine thread with a diameter of M10 and a pitch of 1.00 mm, which allows for a precise and strong connection. The fine thread is suitable for applications where higher precision and strength of the connection is required. The height of the nut is 5 mm, the width between the surfaces (s) is 17 mm and the width in the diagonal (e) is 18.9 mm. These dimensions are optimized for use in limited space or as a lock nut that provides additional securing of the connection.

The material used to manufacture this nut is A4 grade stainless steel, which is known for its high resistance to corrosion, making it suitable for use in harsh environments, including the chemical industry or applications exposed to seawater. The surface finish of the nut is without additional treatments, which means that it retains the natural properties of stainless steel.

This nut is ideal for assemblies where it is necessary to ensure a reliable connection with minimal space requirements. Thanks to its design and material properties, it is suitable for a wide range of applications where high resistance and reliability are required.
