Nut left thread DIN 934 M30x1.50 |08|

Product detailed description

The left-hand thread nut according to DIN 934, M30x1.50, is a precision-made hexagonal nut designed for special applications where it is necessary to secure the connection against the opposite direction of load. This nut is made of steel with a strength class of 8, which guarantees high resistance to mechanical stress and a long service life of the connection.

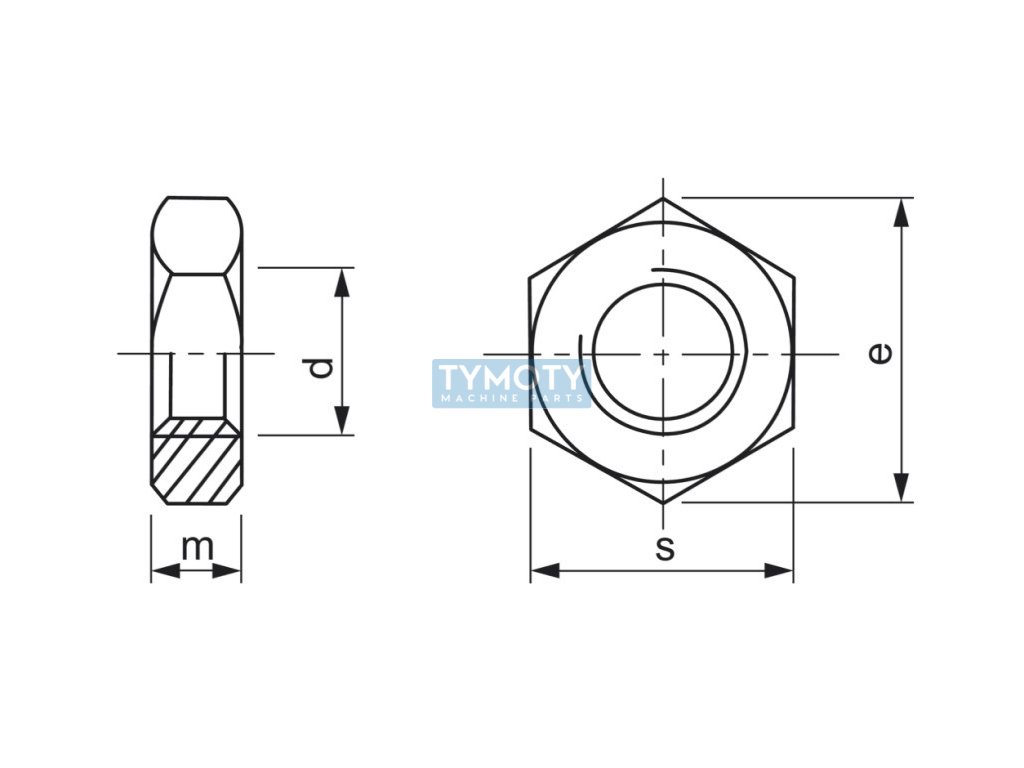

The nut has a metric left-hand fine thread with a diameter of M30 and a pitch of 1.50 mm. The height of the nut is 24 mm, the width between the surfaces (s) is 46 mm and the width between the diagonals (e) is 50.85 mm. These dimensions are in accordance with DIN 934, ISO 4032 and ČSN 021401, which ensures compatibility with other components that meet these standards.

The nut is supplied without surface treatment, which means that it is suitable for applications where additional corrosion protection is not required, or where additional treatment is planned according to specific project requirements. Due to its design and material properties, this nut is ideal for use in mechanical engineering and industrial applications where high precision and reliability of connections are required.
