Nut left thread DIN 934 M22 |08|

Product detailed description

The nut with left-hand metric thread M22 according to DIN 934, ISO 4032 and ČSN 021401 is a precision hexagonal connecting element designed for special applications where the opposite direction of the load is required. This type of nut is made of steel with strength class 8, which guarantees its high resistance to mechanical stress.

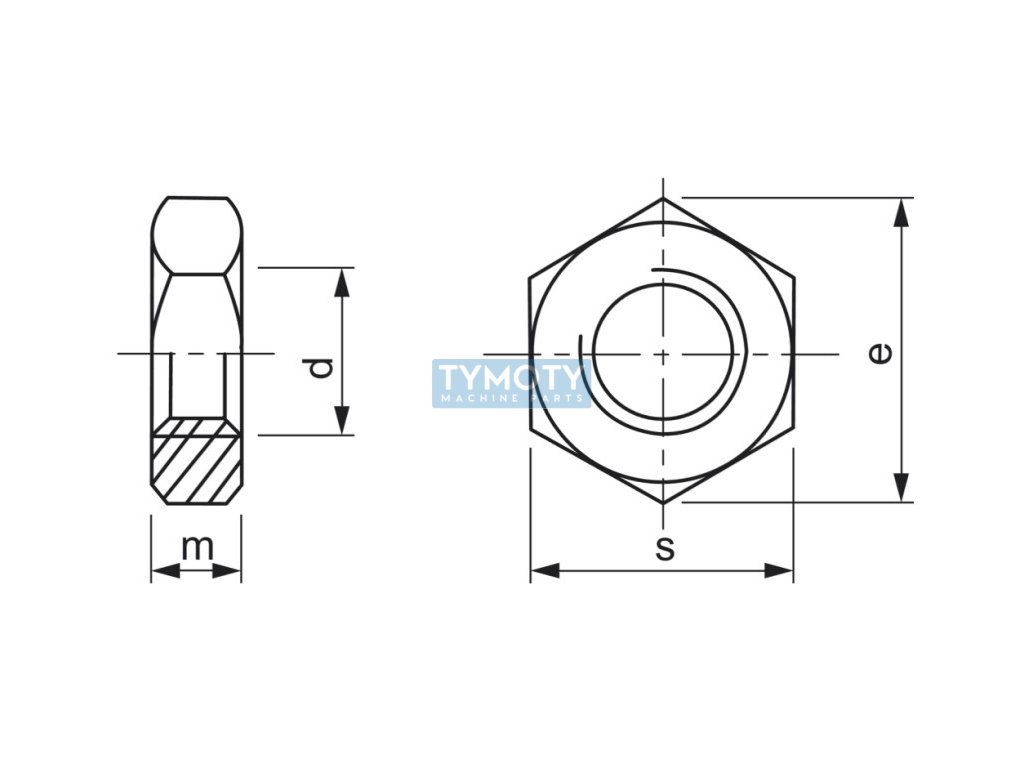

The nut has an outer thread diameter of M22 and a thread pitch of 2.50 mm, which corresponds to standard metric dimensions for left-hand thread. The height of the nut is 18 mm, the width between the surfaces (s) is 32 mm and the width between the diagonals (e) is 35.03 mm. These dimensions are optimized for effective load distribution and easy handling during assembly.

The surface finish of the nut is not specified, which means that it is supplied without additional corrosion protection. Therefore, it is advisable to consider using it in an environment where it is not exposed to aggressive chemicals or moisture, or to provide additional surface treatment according to the requirements of the specific application.

This nut is ideal for applications where it is necessary to ensure a strong and reliable connection with components that require a left-hand thread, such as reversing mechanisms or special structures where the direction of the load is opposite to normal applications.
