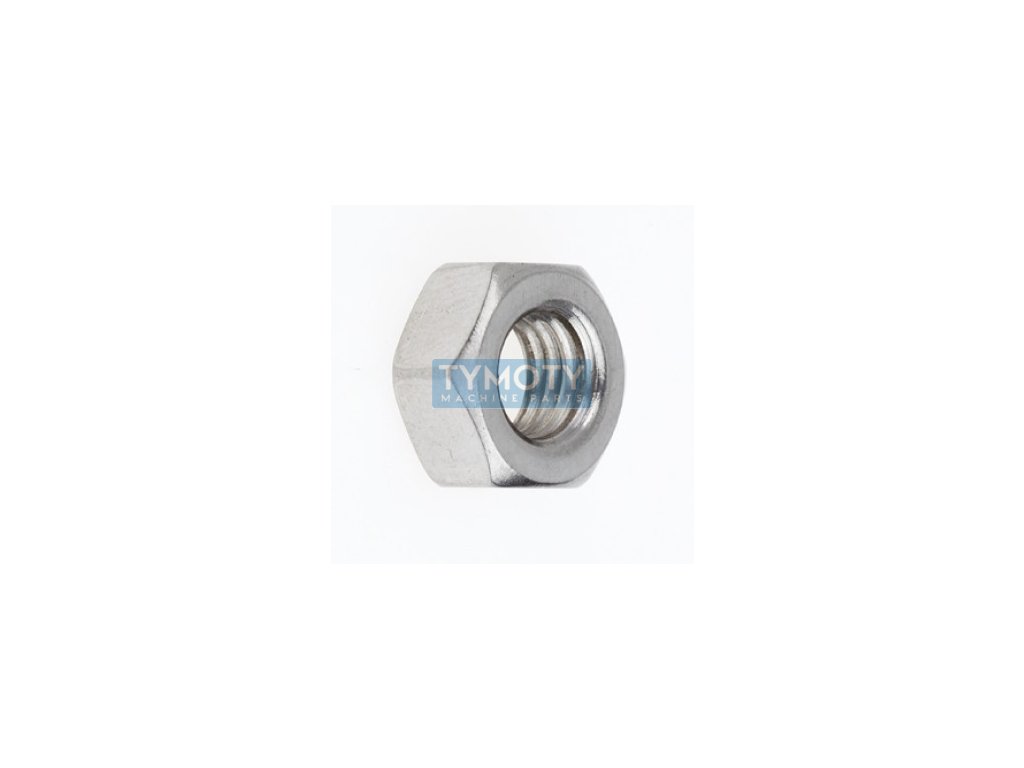

Nut DIN 934 M8 stainless steel A2

Product detailed description

The DIN 934 M8 nut made of A2 stainless steel is a precision hexagonal nut designed for standardized bolted connections with metric threads in mechanical structures. This nut meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and reliability in a wide range of applications.

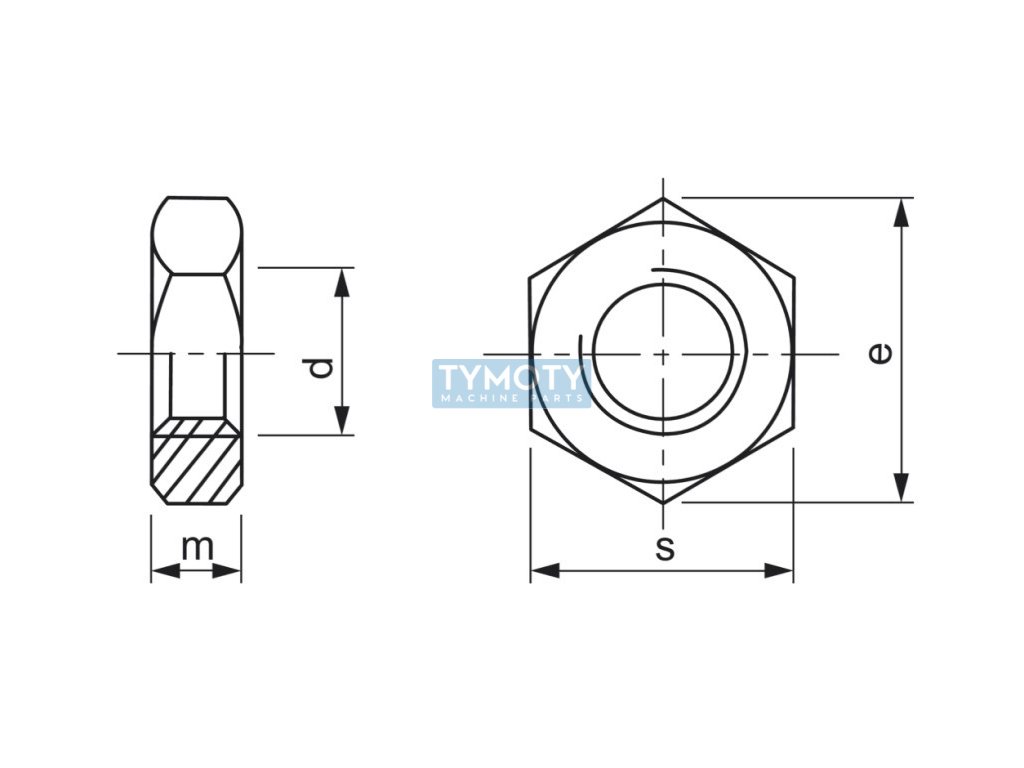

The nut has a metric M8 thread with a pitch of 1.25 mm, which is a standard dimension for this type of thread. The height of the nut is 6.5 mm, the width between the surfaces (s) is 13 mm and the width between the diagonals (e) is 14.38 mm. These dimensions are precisely defined to ensure optimal connection and uniform distribution of forces in the connection.

The material of the nut is A2 grade stainless steel, which provides high corrosion resistance, which is especially important in environments with high humidity or chemical exposure. The A2 strength class indicates that the nut is suitable for applications where medium strength and high corrosion resistance are required. The surface treatment is not applied, which is typical of stainless materials that naturally resist corrosion without the need for additional treatment.

This nut is ideal for use in a variety of industries including mechanical engineering, construction and automotive, where reliability and durability of connections are required. It is suitable for use with a variety of bolt and threaded rod types that meet the same standards and specifications.
