Nut DIN 934 M8 |08| hot dip galvanized

Product detailed description

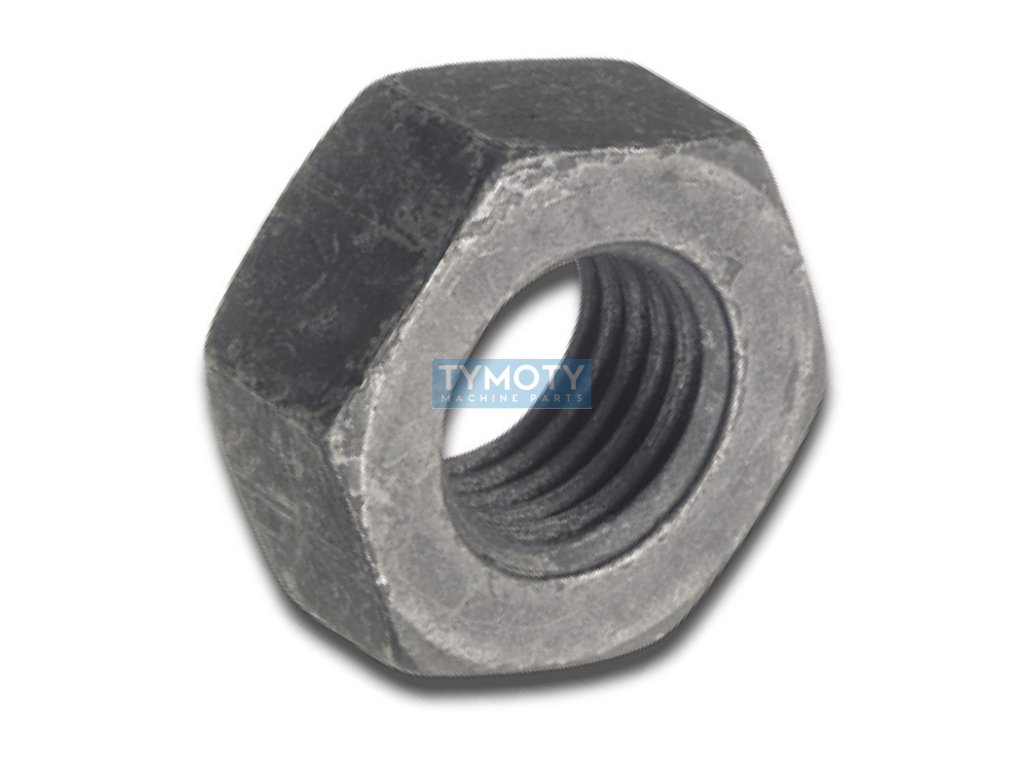

The DIN 934 M8 nut is a precision hexagonal nut designed for standardized bolted joints with metric threads, which meets the standards DIN 934, ČSN 021401 and ISO 4032. It is made of steel with strength class 8, which guarantees high resistance to mechanical stress. The surface treatment is hot-dip galvanizing, which provides excellent corrosion protection, thus extending the life of the nut even in demanding conditions.

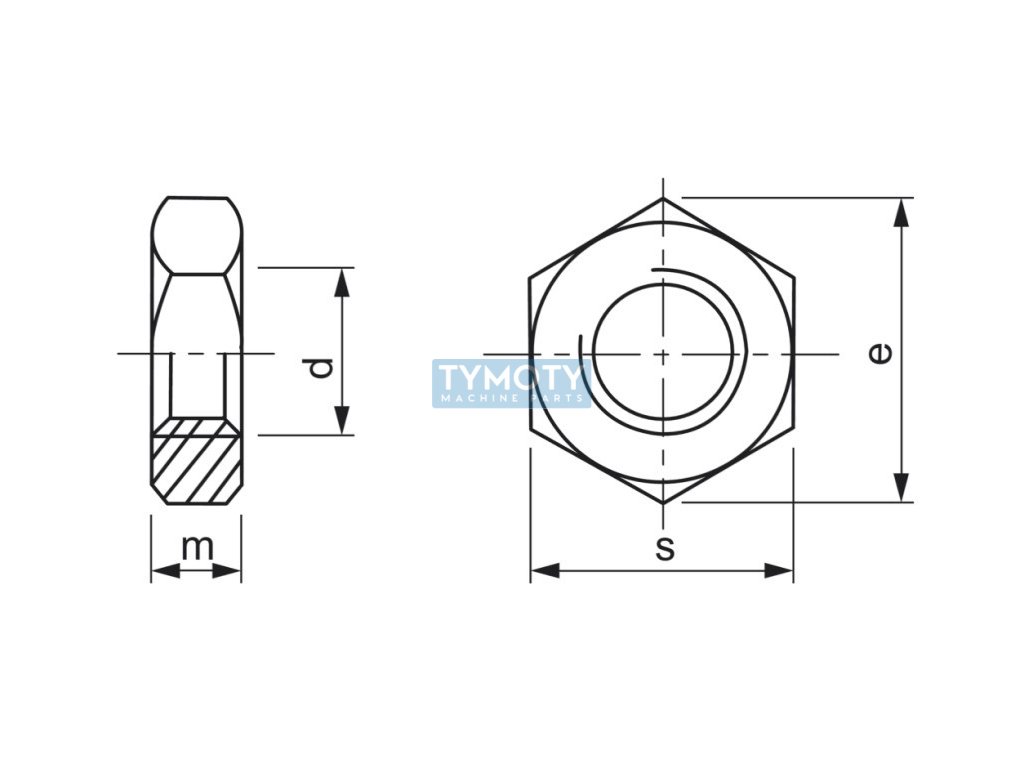

The nut has a metric M8 thread with a tolerance of 6H and a pitch of 1.25 mm. Its dimensions are optimized for efficient use in mechanical structures: the height of the nut is 6.5 mm, the width between the surfaces (s) is 13 mm and the width between the diagonals (e) is 14.38 mm. These precise dimensions ensure a reliable connection and easy assembly.

This nut is suitable for use in various industries where high strength and corrosion resistance are required, such as mechanical engineering, construction and automotive. It is ideal for applications where reliability and long-term stability of the connection are required.
