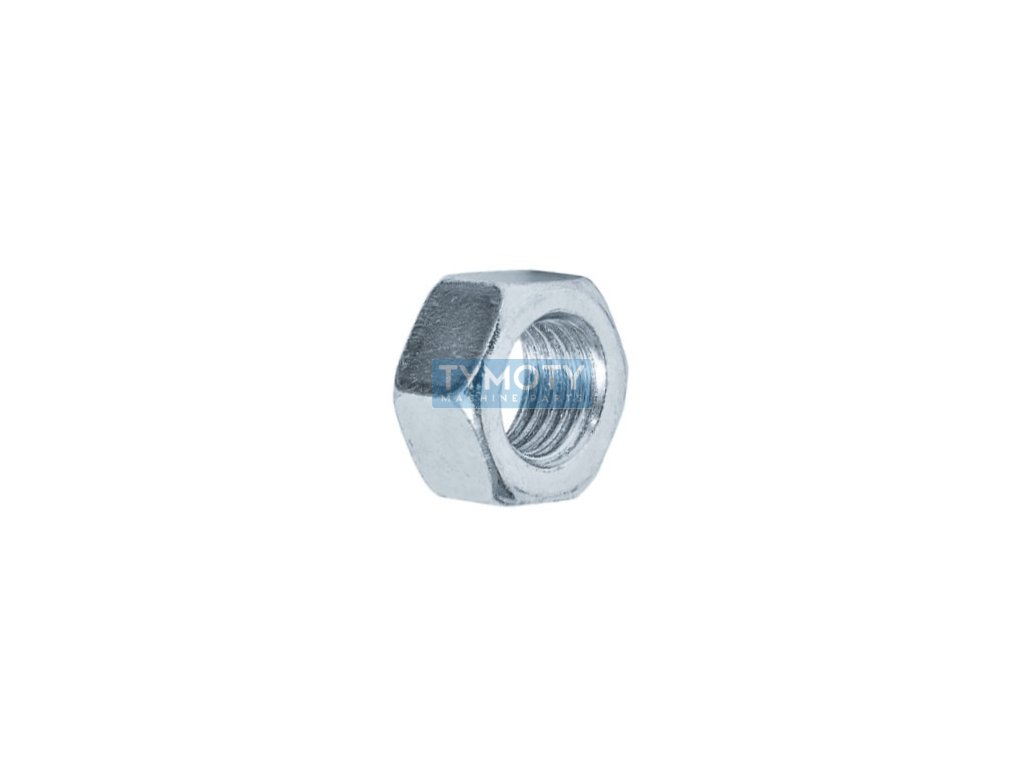

Nut DIN 934 M42x3.00 |08| zinc

Product detailed description

The DIN 934 M42x3.00 nut is a precision hexagonal nut manufactured according to DIN 934, ČSN 021401 and ISO 4032 standards. This nut is intended for standardized screw connections with metric fine thread, which makes it suitable for use in various mechanical structures where high accuracy and reliability of the connection are required.

The nut has a metric fine thread with dimensions M42x3.00, where M42 indicates the nominal thread diameter of 42 mm and 3.00 is the thread pitch in millimeters. This type of thread is suitable for applications where higher accuracy and finer adjustment of the connection is required compared to the standard metric thread.

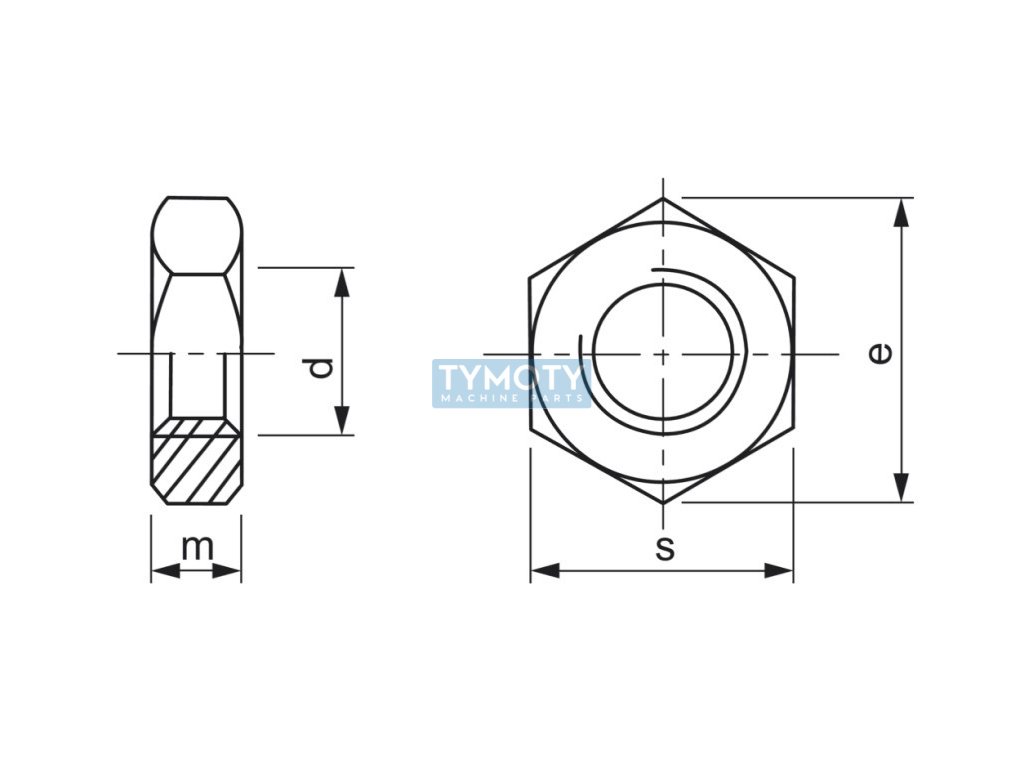

The height of the nut is 34 mm, the width between the surfaces (s) is 65 mm and the width between the diagonals (e) is 71.3 mm. These dimensions comply with standards and ensure compatibility with the relevant screws and other fasteners.

The nut is made of steel with a strength class of 8, which means it has a high tensile strength that is suitable for most industrial applications. The surface treatment is white zinc-plated, which provides corrosion protection and increases the service life of the nut in harsh conditions.

This nut is part of the hexagon nut group and is comparable to DIN 971-1 and ISO 4032. It is ideal for use in applications where fine adjustment and high reliability of the connection are required, such as mechanical engineering and building construction.
