Nut DIN 934 M42 |08| zinc

Product detailed description

The DIN 934 M42 nut is a precision hexagonal nut manufactured according to DIN 934, ČSN 021401 and ISO 4032 standards. This nut is designed for standardized bolted connections with metric threads, which are commonly used in mechanical structures. The nut has a metric thread with a diameter of M42 and a pitch of 4.50 mm, which ensures compatibility with the corresponding bolts of the same size.

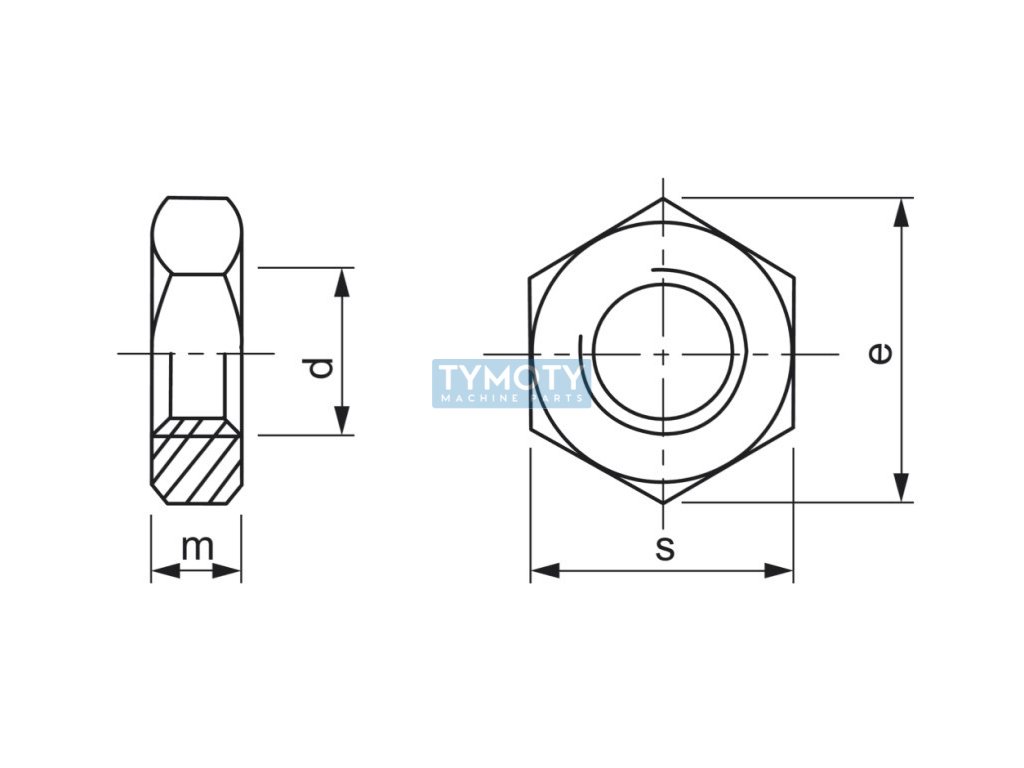

The nut has a height of 34 mm, a width between opposing surfaces (s) of 65 mm and a width between diagonals (e) of 71.3 mm. These dimensions comply with the standards and ensure a reliable connection. It is made of steel of strength class 8, which means that it is able to withstand high mechanical loads and is suitable for applications where high strength and reliability of the connections are required.

The surface treatment of the nut is zinc-plated, specifically white zinc, which provides additional protection against corrosion and increases resistance to external influences. This surface treatment is particularly important in environments where there may be exposure to moisture or chemicals.

The DIN 934 M42 nut is part of the group of hexagonal nuts and is suitable for use in various industrial sectors where reliable and strong screw connections are required. Its precise dimensions and high quality of processing guarantee long-term functionality and reliability in demanding conditions.
