Nut DIN 934 M36x3.00 stainless steel A2

Product detailed description

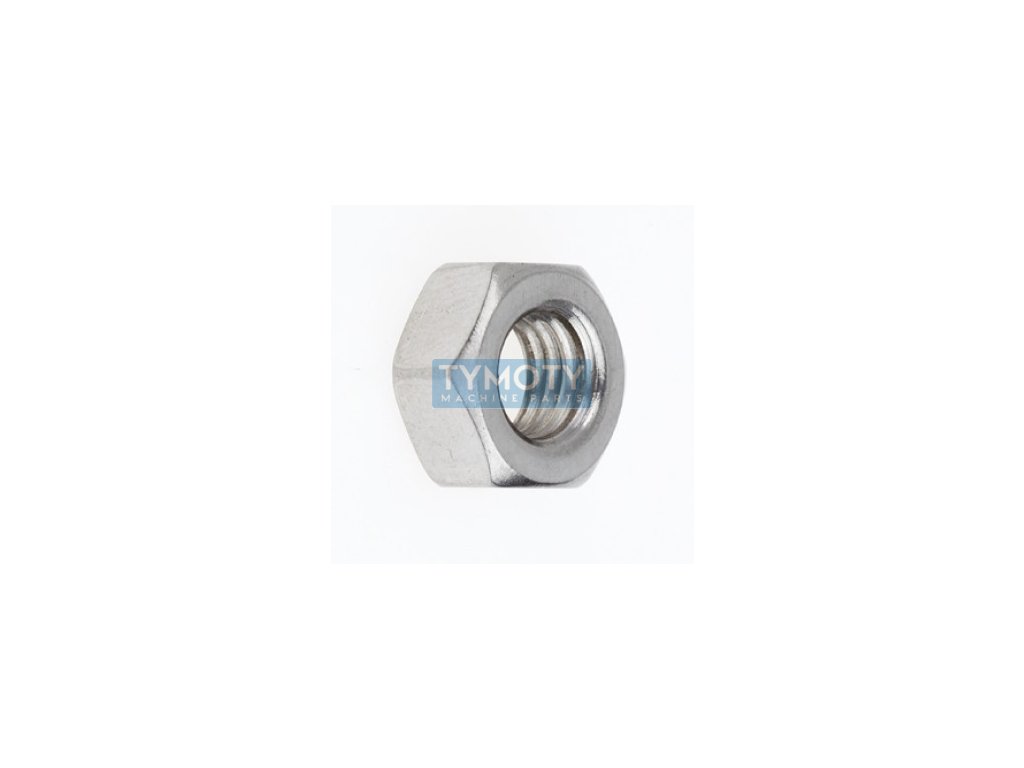

The DIN 934 M36x3.00 nut made of A2 stainless steel is a precision hexagonal nut designed for standardized screw connections with metric fine thread. This nut meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and reliability in various mechanical structures. Its dimensions are optimized for use in applications where high precision and strength are required.

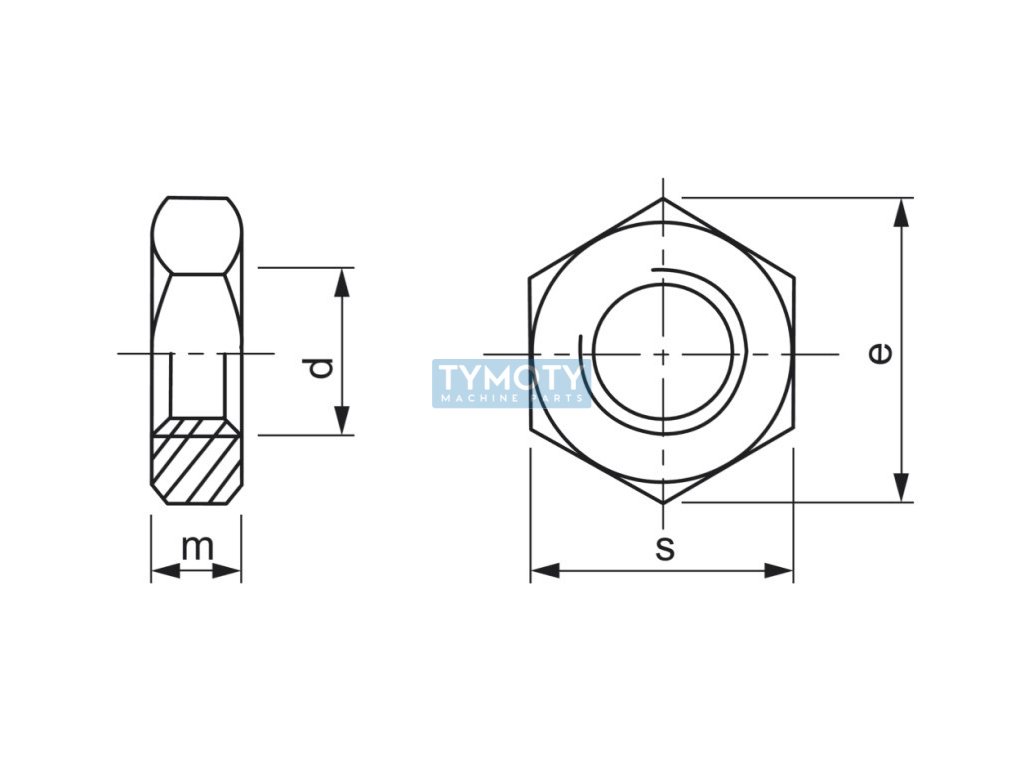

The nut has a diameter of M36 with a fine thread, the pitch of which is 3.00 mm. The height of the nut is 29 mm, the width between the surfaces (s) is 55 mm and the width between the diagonals (e) is 60.79 mm. These dimensions are in accordance with the standards and ensure proper fit and stability in the joints.

The material used to manufacture this nut is A2 grade stainless steel, which provides excellent corrosion resistance and is suitable for use in environments with higher humidity or chemically aggressive conditions. The surface treatment is not applied, which is typical of stainless materials that naturally resist corrosion without the need for additional treatment.

This nut is ideal for use in industrial applications where high strength and reliability of connections are required. It is suitable for use in mechanical engineering, construction and other technical areas where precise and durable connection of components is required.
