Nut DIN 934 M36x3.00 |08| zinc

Product detailed description

The DIN 934 M36x3.00 nut is a precision hexagonal nut manufactured according to DIN 934, ČSN 021401 and ISO 4032 standards. This nut is designed for standardized screw connections with metric fine thread, which makes it suitable for use in various mechanical structures.

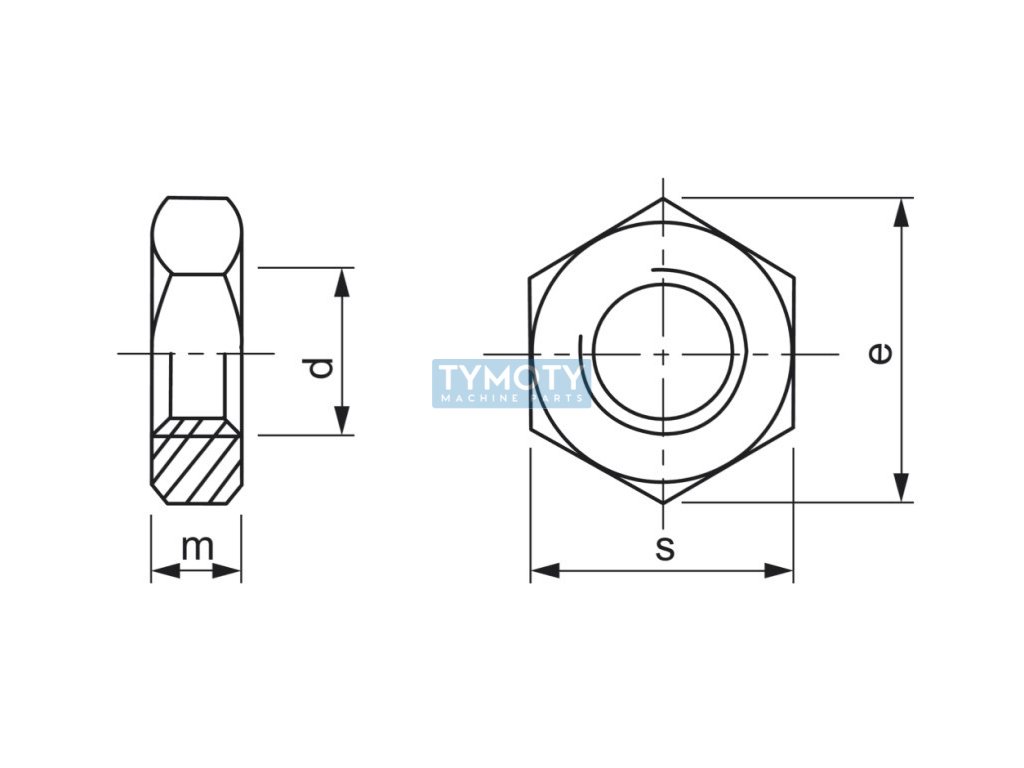

The nut has a metric fine thread with a diameter of M36 and a pitch of 3.00 mm. Its height is 29 mm, the width between the surfaces (s) is 55 mm and the width between the diagonals (e) is 60.79 mm. These dimensions are in accordance with the above standards, which guarantees compatibility with other components within standardized systems.

It is made of steel with strength class 8, which means that the nut has sufficient strength and durability for most industrial applications. The surface treatment is zinc-plated, specifically white zinc, which provides additional protection against corrosion and increases the service life of the component in harsh conditions.

This nut is part of the hexagonal nut group and is suitable for use in applications where high precision and reliability of connections are required. Thanks to its properties and design parameters, it is an ideal choice for professionals looking for a quality fastener for their projects.
