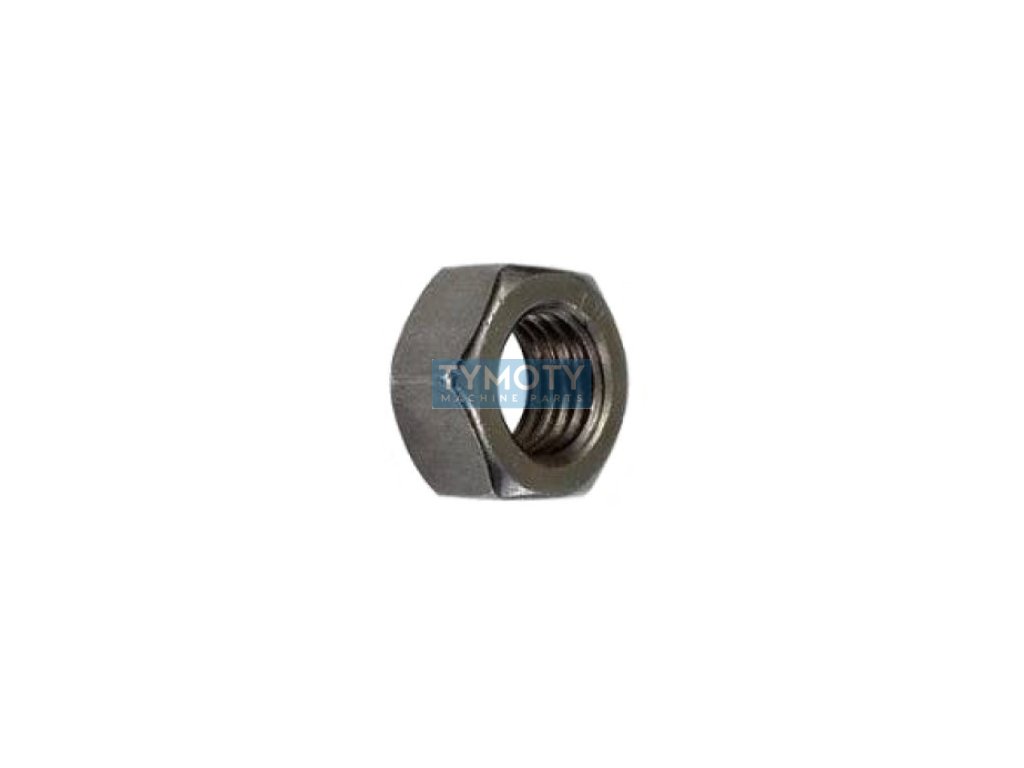

Nut DIN 934 M36x2.00 |08|

Product detailed description

The precision hexagon nut DIN 934 M36x2.00 is designed for standardized screw connections with metric fine thread in mechanical structures. This nut meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and reliability in various applications.

The nut has a metric fine thread with a diameter of M36 and a pitch of 2.00 mm, which allows for a precise and strong connection. The height of the nut is 29 mm, the width between the opposing surfaces (s) is 55 mm and the width between the diagonals (e) is 60.79 mm. These dimensions are optimized for use with compatible screws and ensure stability and strength of the connection.

It is made of steel of strength class 8, which means that the nut has high mechanical resistance and is suitable for applications where higher material strength is required. The surface treatment is not applied, which is important to consider when using in environments with higher humidity or corrosive conditions where additional protection might be required.

This nut is ideal for use in industrial and construction applications where a reliable and precise connection with a fine thread is required. Due to its design and material properties, it provides a high level of safety and durability in harsh conditions.
