Nut DIN 934 M35x1.50 |06|

Product detailed description

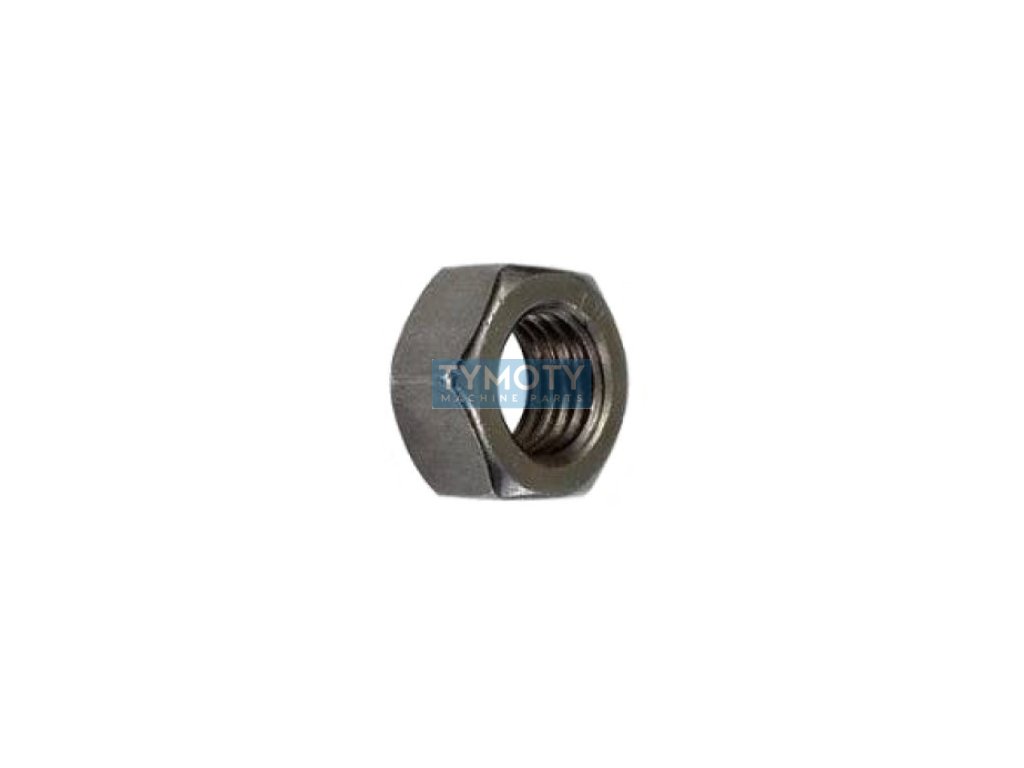

The DIN 934 M35x1.50 nut is a precision hexagonal nut designed for use in standardized screw connections with metric fine thread. This nut is manufactured according to DIN 934, ČSN 021401 and ISO 4032 standards, which guarantees its compatibility and reliability in various mechanical structures.

The nut has an M35 thread outer diameter with a pitch of 1.50 mm, which makes it ideal for applications where fine tightening control is required. The height of the nut is 29 mm, the width between the surfaces (s) is 55 mm and the width between the diagonals (e) is 60.79 mm. These dimensions are optimized for effective force transmission and ensuring a solid connection.

It is made of steel with strength class 6, which provides sufficient resistance to mechanical stress in common industrial applications. The surface treatment is not applied, which means that the nut is in a raw state, without corrosion protection. Therefore, it is suitable for use in environments where high demands are not placed on corrosion resistance, or where additional surface treatment is planned according to specific project requirements.

This nut is ideal for applications where precision and reliability are required, such as assembly work in mechanical engineering, machine and plant construction, or in the automotive industry. Its design and material properties guarantee a long service life and reliable functionality in various operating conditions.
