Nut DIN 934 M33x2.00 |08|

Product detailed description

The DIN 934 M33x2.00 nut is a precision hexagonal nut designed for use in standardized screw connections with metric fine thread. This nut is manufactured according to DIN 934, ČSN 021401 and ISO 4032 standards, which guarantees its compatibility and reliability in various mechanical structures.

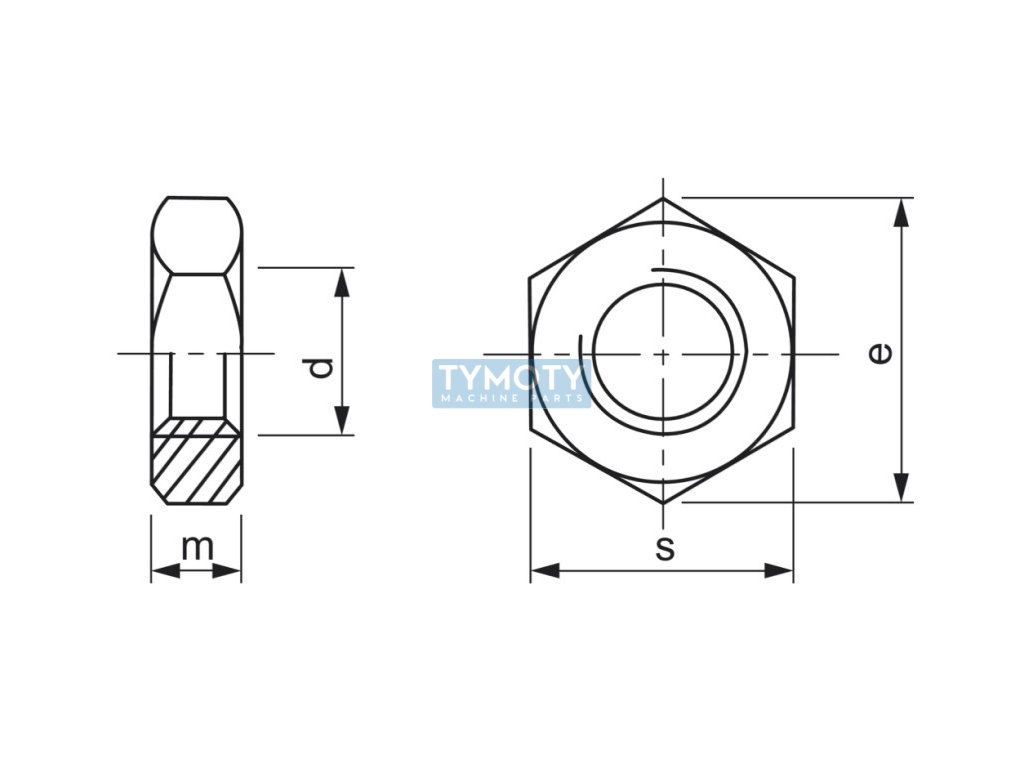

The nut has an outer diameter of the M33 thread with a fine pitch of 2.00 mm, which is suitable for applications requiring a precise and strong connection. The height of the nut is 26 mm, the width between the surfaces (s) is 50 mm and the width between the diagonals (e) is 55.37 mm. These dimensions are optimized for effective force distribution and ensuring the stability of the connection.

It is made of steel of strength class 8, which provides high resistance to mechanical stress and guarantees a long service life even in difficult conditions. The nut is supplied without surface treatment, which allows it to be further customized according to specific application requirements, such as electroplating or other anti-corrosion treatments.

This nut is ideal for use in industrial applications where high precision and reliability of connections are required, such as mechanical engineering, the automotive industry or construction machinery. Thanks to its design and material properties, it provides an optimal solution for demanding mechanical connections.
