Nut DIN 934 M30 |08| zinc

Product detailed description

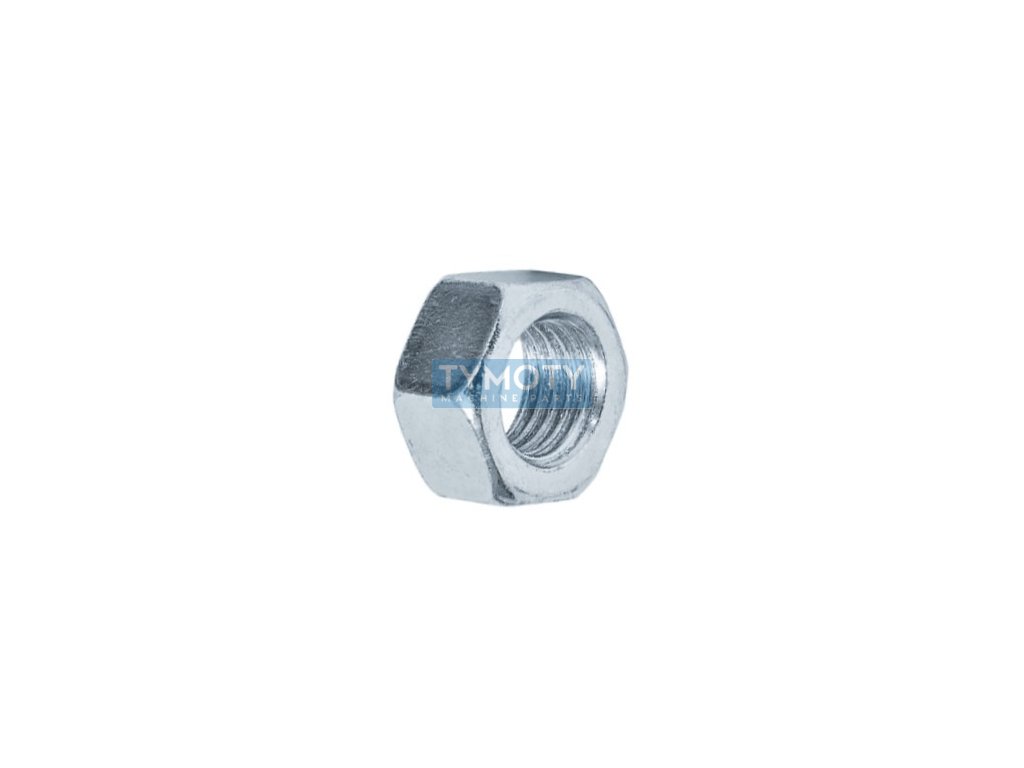

The DIN 934 M30 nut is a precision hexagonal nut designed for standardized bolted connections with metric threads. This nut meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and reliability in various mechanical structures.

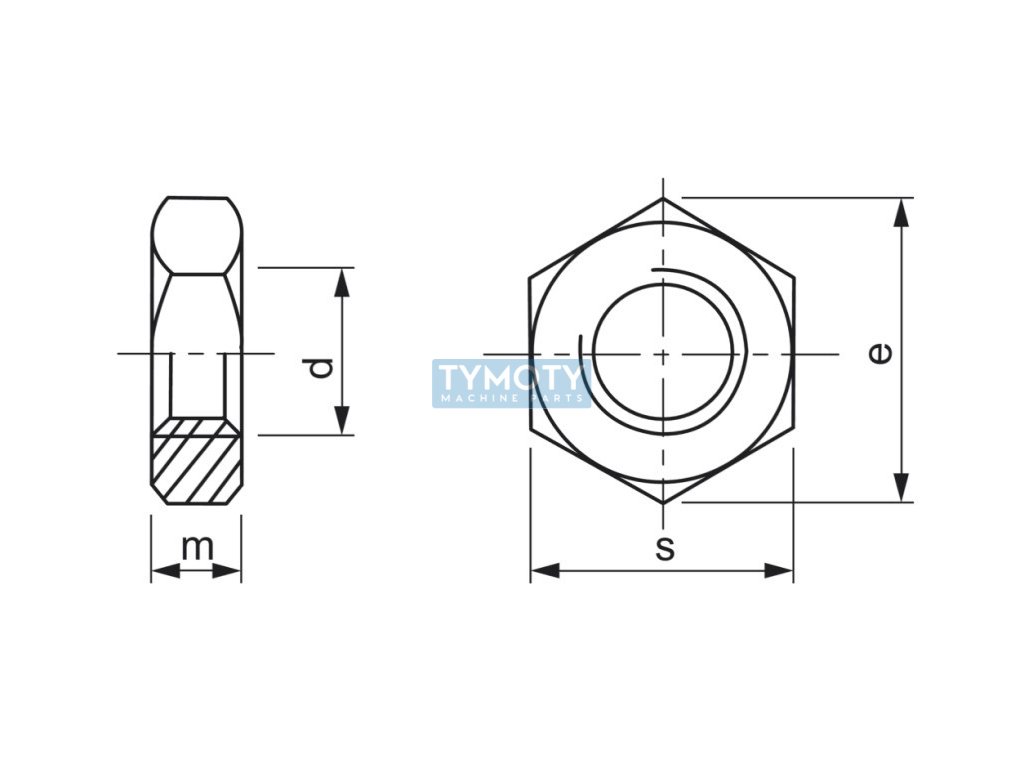

The nut has a metric thread with a diameter of M30 and a pitch of 3.50 mm. Its height is 24 mm, the width between the surfaces (s) is 46 mm and the distance between the opposite peaks (e) is 50.85 mm. These dimensions ensure a precise and strong connection in applications where high accuracy and durability are required.

It is made of steel with a strength class of 8, which means that it is able to withstand high loads and is suitable for use in harsh conditions. The surface treatment is white zinc plating, which provides increased corrosion resistance, thus extending the life of the nut even in environments with higher humidity or chemical stress.

This nut is ideal for use in various industries where reliable and durable fasteners are needed, such as mechanical engineering, construction and the automotive industry. Its precise dimensions and high strength guarantee a safe and durable connection that meets the highest quality standards.
