Nut DIN 934 M3 |08|

Product detailed description

The DIN 934 M3 nut is a precision hexagonal nut designed for standardized bolted connections with metric threads. It meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and versatility in mechanical structures. This nut is made of steel of strength class 8, which provides it with high strength and resistance to mechanical stress.

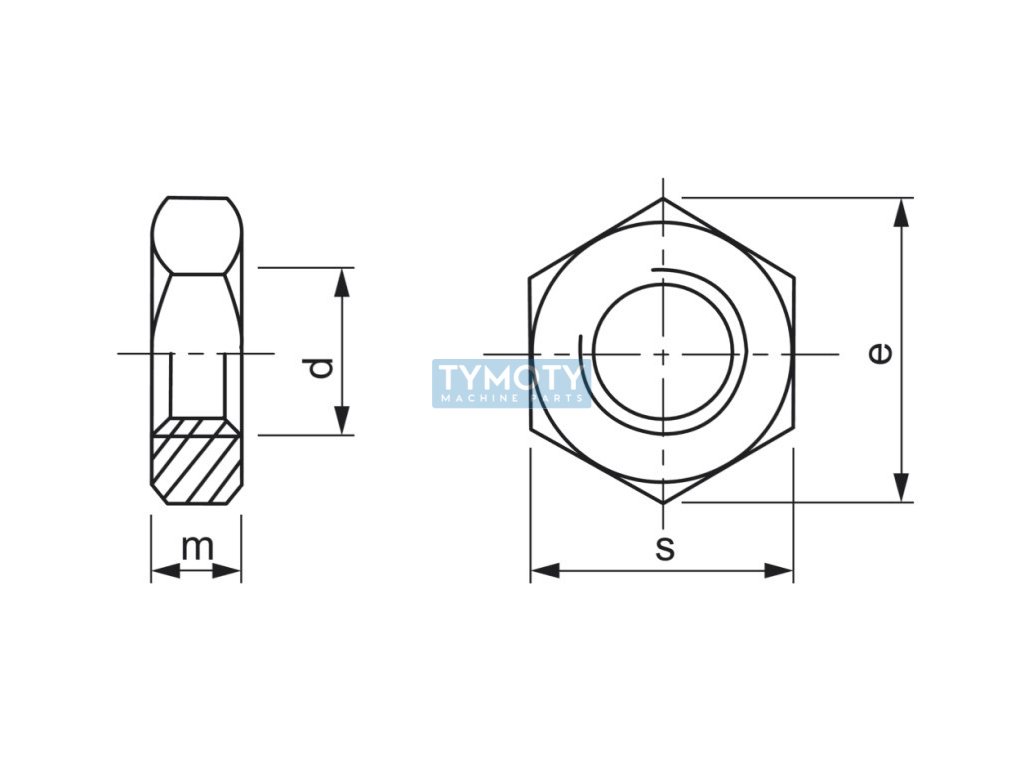

The nut has a metric M3 thread with a pitch of 0.50 mm. Its dimensions are precisely defined: the height of the nut (m) is 2.4 mm, the width between the surfaces (s) is 5.5 mm and the width between the diagonals (e) is 6.01 mm. These dimensions ensure a reliable and strong connection in structural applications.

The product is supplied without surface treatment, which means that it is in a raw steel state. This can be advantageous in applications where further processing or specific surface treatment is required according to project requirements. This nut is ideal for use in various industries where high precision and reliability of joints are required.
