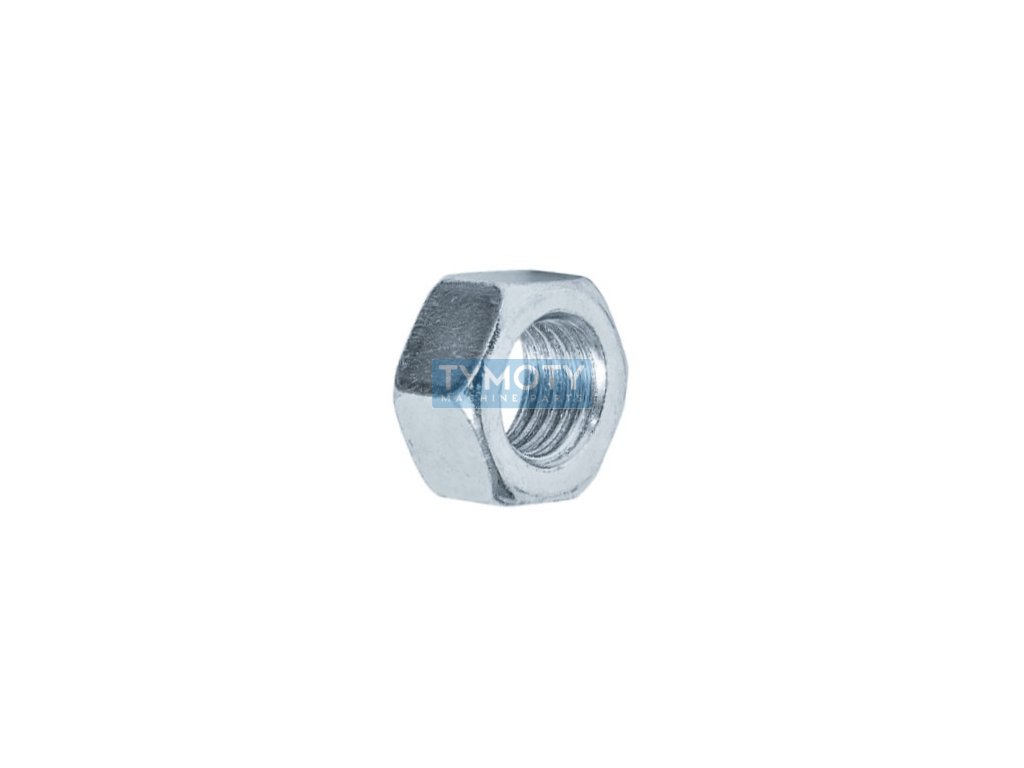

Nut DIN 934 M24 |10| zinc

Product detailed description

The DIN 934 M24 |10| zinc-plated nut is a precision hexagonal nut designed for standardized bolted connections with metric threads, which is widely used in various mechanical structures. This nut meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and reliability in international applications.

The nut has a metric thread with a diameter of M24 and a pitch of 3.00 mm, which allows it to be used with the corresponding screws and threaded rods. The height of the nut is 19 mm, the width between the surfaces (s) is 36 mm and the width between the diagonals (e) is 39.55 mm. These dimensions ensure a solid and stable connection in structures where high precision and reliability are required.

It is made of steel with a strength class of 10, which means that the nut has high strength and resistance to mechanical stress. The zinc coating provides additional protection against corrosion, thus extending the life of the nut even in harsh conditions.

This nut is an ideal solution for applications where high strength and corrosion resistance are required, such as engineering, construction and industrial projects. Thanks to its precision and compliance with international standards, it is suitable for a wide range of applications in various industries.
