Nut DIN 934 M22 |10| zinc

Product detailed description

The DIN 934 M22 nut is a precision hexagonal nut designed for standardized bolted joints with metric threads, which meets the standards DIN 934, ČSN 021401 and ISO 4032. This nut is made of steel and belongs to strength class 10, which guarantees high mechanical resistance and reliability in demanding applications. The surface treatment is made with white zinc plating, which provides increased protection against corrosion and extends the life of the component in environments with higher humidity or chemical aggressiveness.

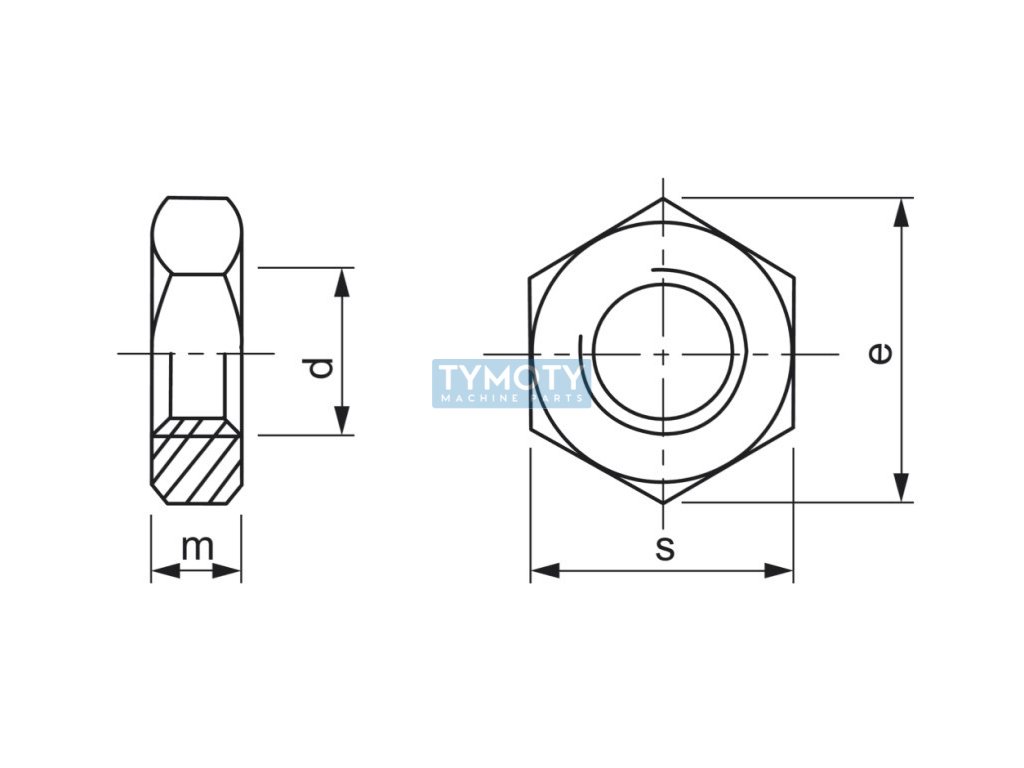

The nut has a metric M22 thread with a pitch of 2.50 mm, which is a standard size for this type of fastener. The geometric dimensions of the nut are defined as follows: the height of the nut (m) is 18 mm, the width between the surfaces (s) is 32 mm and the width between the diagonals (e) is 35.03 mm. These dimensions ensure compatibility with the corresponding screws and allow easy assembly and disassembly using standard tools.

This nut is ideal for use in mechanical structures where high strength and reliability of the connection are required. It is suitable for applications in engineering, construction and other industries where it is necessary to ensure a strong and stable connection of components.
