Nut DIN 934 M22 |08|

Product detailed description

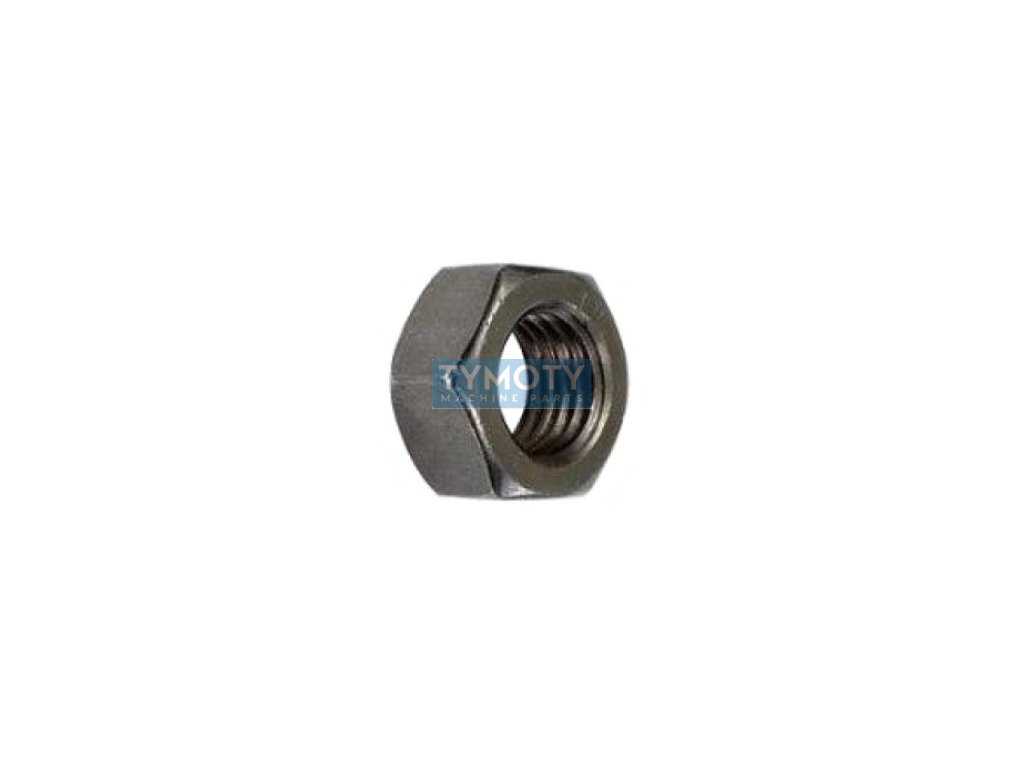

The DIN 934 M22 nut is a precision hexagonal nut designed for standardized bolted joints with metric threads, used in various mechanical structures. This nut is manufactured according to DIN 934, ČSN 021401 and ISO 4032 standards, which guarantees its compatibility and reliability in international applications.

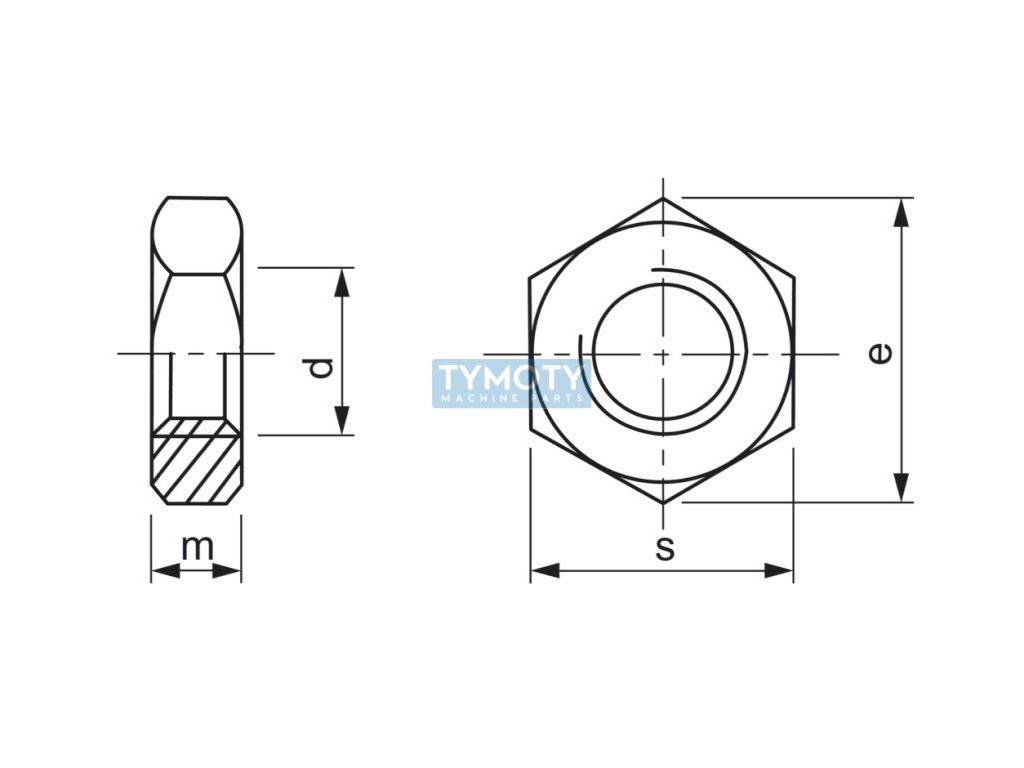

The nut has a metric thread with a diameter of M22 and a pitch of 2.50 mm. Its height is 18 mm, the width between the surfaces (s) is 32 mm and the width between the diagonals (e) is 35.03 mm. These dimensions ensure optimal strength and stability when used in various structural applications.

It is made of steel of strength class 8, which means that it has high resistance to mechanical stress and is suitable for use in harsh conditions. No surface treatment is applied, which can be an advantage in cases where further processing or surface treatment is required according to specific project requirements.

This nut is ideal for applications where high precision and reliability of connections are required, and is widely used in mechanical engineering, construction and other industries.
