Nut DIN 934 M16 |08|

Product detailed description

The DIN 934 M16 nut is a precision hexagonal nut designed for standardized bolted connections with metric threads in mechanical structures. This nut meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and reliability in various applications.

The nut has a metric thread with a diameter of M16 and a pitch of 2.00 mm. It is made of steel with a strength class of 8, which means that it is able to withstand high mechanical loads, and is suitable for use in demanding industrial conditions. Strength class 8 indicates that the nut has a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa.

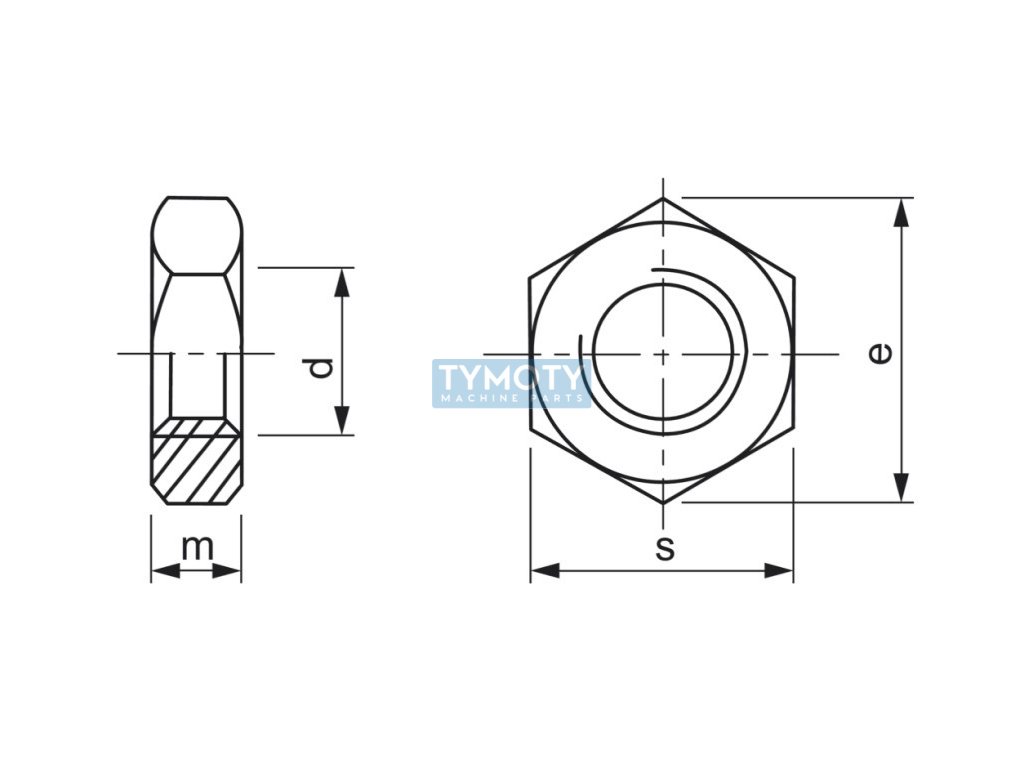

The geometric dimensions of the nut are as follows: height m is 13 mm, width s is 24 mm and width e, which is the distance between opposite corners, is 26.75 mm. These dimensions are optimized for efficient force transmission and ensuring a solid connection within the structure.

The nut is supplied without surface treatment, which means that it is in a raw steel state. This can be advantageous in applications where subsequent adaptation of the surface treatment is necessary according to the specific requirements of the project or the environment in which the nut will be used.

This nut is ideal for use in various industries where high strength and reliability of connections are required, such as mechanical engineering, construction or the automotive industry. Thanks to its precision and compliance with international standards, it is suitable for a wide range of applications.
