Nut DIN 934 M14 brass

Product detailed description

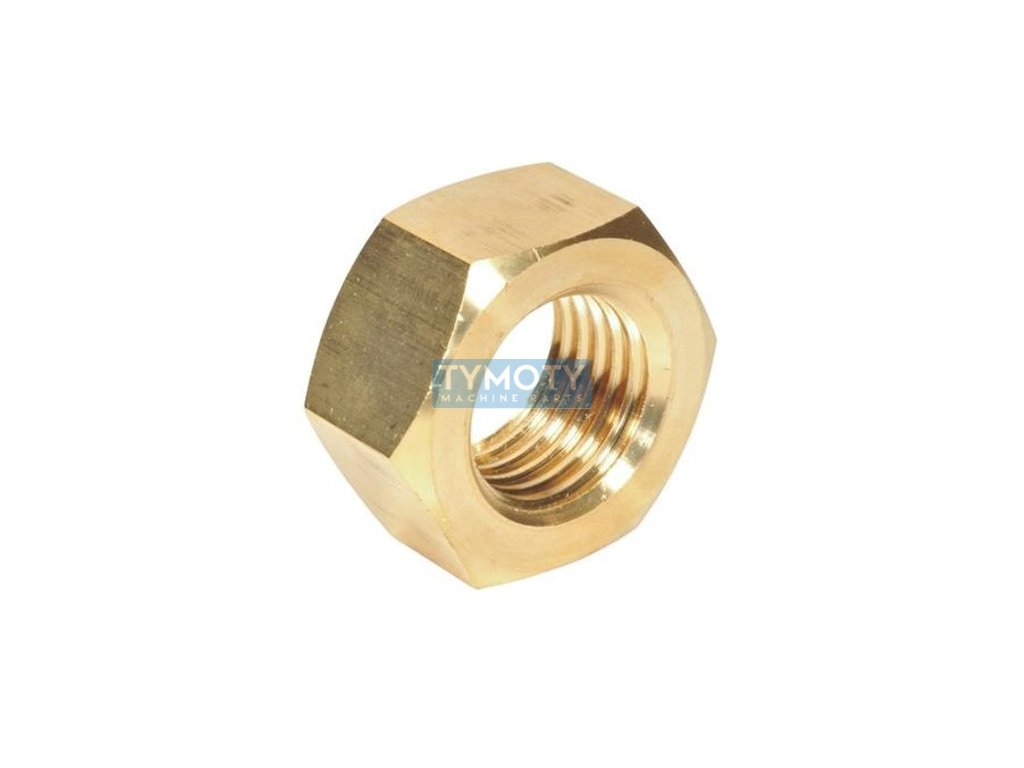

The DIN 934 M14 nut is a precision hexagonal nut made of brass that meets the standards DIN 934, ČSN 021401 and ISO 4032. This component is designed for standardized bolted connections with metric threads, which makes it suitable for a wide range of mechanical structures.

The nut has a metric thread with a diameter of M14 and a pitch of 2.00 mm, which ensures compatibility with commonly used screws of the same size. The height of the nut is 11 mm, the width between the surfaces (s) is 22 mm and the width between the diagonals (e) is 24.49 mm. These dimensions guarantee a precise fit and optimal functionality within mechanical assemblies.

The brass material provides the nut with excellent corrosion resistance and good mechanical properties, which is advantageous in environments where increased resistance to chemical influences or moisture is required. No surface treatment is applied, which is typical for brass components, as the material itself provides sufficient protection.

The nut is not specified by strength class, which indicates that it is intended for applications where extreme strength requirements are not imposed. It is ideal for use in applications where a combination of reliability, corrosion resistance and aesthetic appearance is important.
