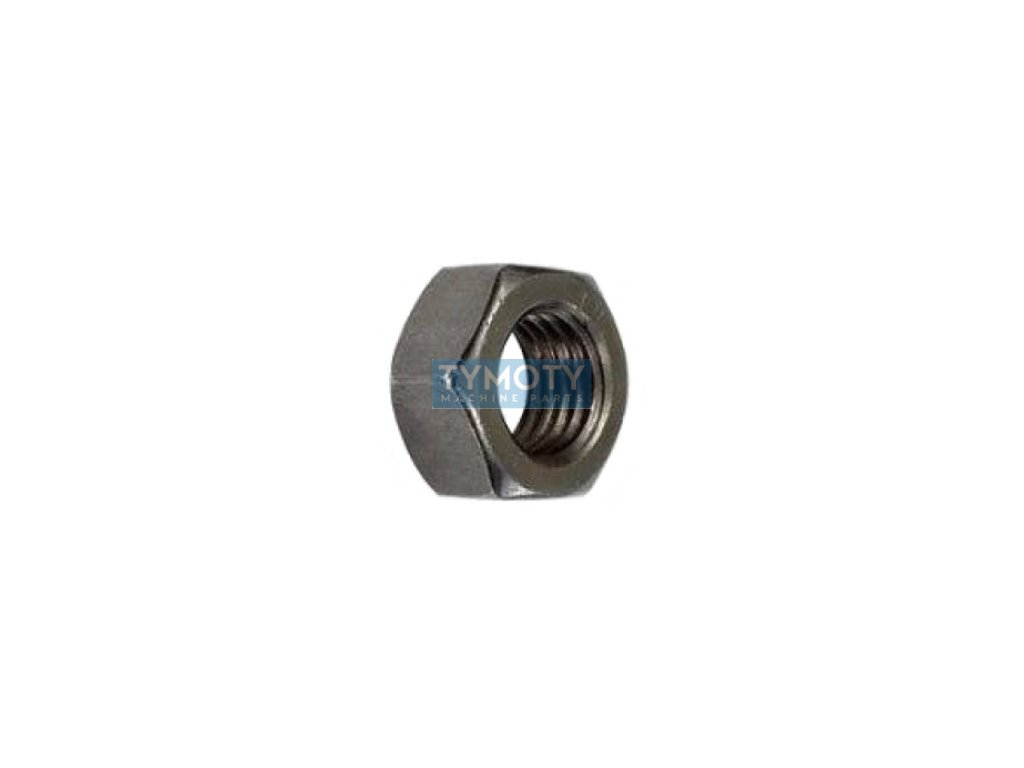

Nut DIN 934 M12x1.50 |08|

Product detailed description

The DIN 934 M12x1.50 nut is a precision hexagonal nut designed according to DIN 934, ČSN 021401 and ISO 4032 standards. It is intended for standardized screw connections with metric fine thread, which makes it suitable for use in various mechanical structures where higher accuracy and strength of connections are required.

This nut has a metric fine thread with a diameter of M12 and a pitch of 1.50 mm. The fine thread is characterized by a smaller pitch compared to a conventional metric thread, which allows for more precise adjustment and higher resistance to vibrations.

The nut has a height of 10 mm and a width between the surfaces (s) of 19 mm, while the width between the diagonals (e) is 21.1 mm. These dimensions are optimized for efficient force transmission and ensuring a reliable connection.

It is made of steel with a strength class of 8, which guarantees high mechanical resistance and the ability to withstand significant loads. Strength class 8 indicates a minimum yield strength of 640 MPa and a minimum tensile strength of 800 MPa, which is suitable for demanding applications where high reliability of connections is required.

The nut is supplied without surface treatment, which is suitable for applications where additional corrosion protection or aesthetic treatment is not required. If necessary, surface treatments can be applied according to specific project requirements.

This nut is ideal for use in various industrial sectors, including mechanical engineering, automotive and construction, where precision and reliability of fasteners are required.
