Nut DIN 934 M12x1.25 |08|

Product detailed description

The DIN 934 M12x1.25 nut is a precision hexagonal nut designed for use in standardized screw connections with metric fine thread. This nut is manufactured according to DIN 934, ČSN 021401 and ISO 4032 standards, which guarantees its compatibility and reliability in various mechanical structures.

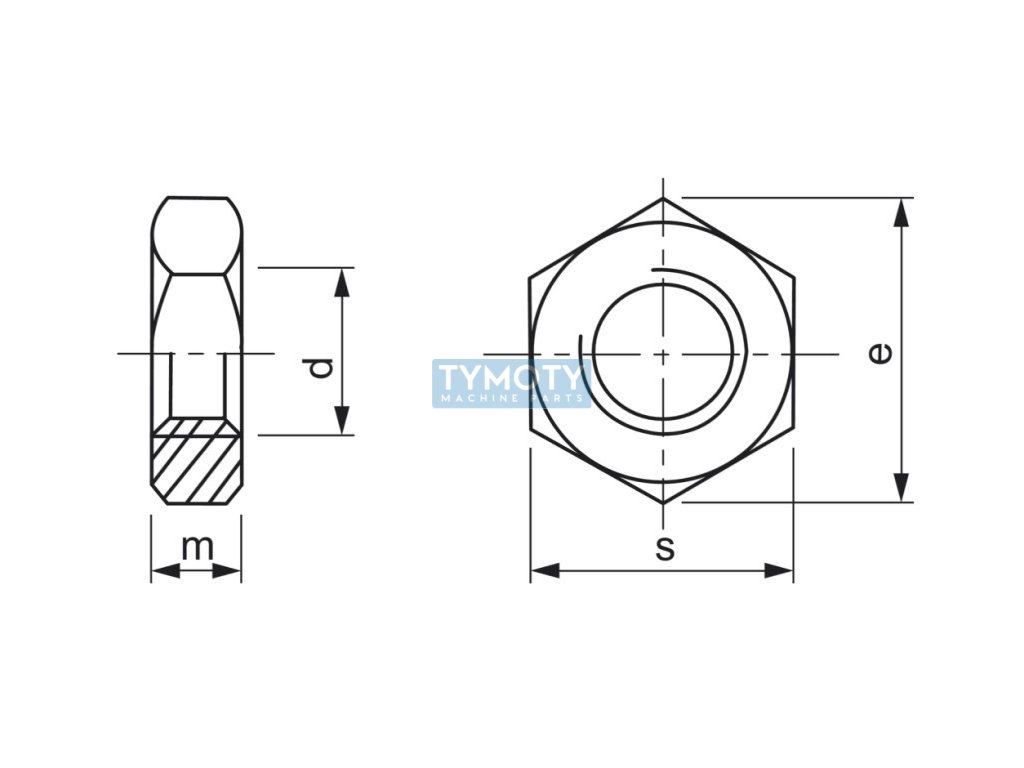

The nut has a metric fine thread with a diameter of M12 and a pitch of 1.25 mm, which allows for a precise and strong connection. The height of the nut is 10 mm, the width between the surfaces (s) is 19 mm and the width between the diagonals (e) is 21.1 mm. These dimensions are optimized for effective force distribution and ensuring joint stability.

It is made of steel with strength class 8, which provides high resistance to mechanical stress and guarantees a long service life in demanding conditions. The nut is supplied without surface treatment, which is suitable for applications where additional corrosion protection or aesthetic treatment is not required.

This nut is ideal for use in various industrial sectors where a reliable and precise connection is required. It is suitable for applications where high precision and strength of the connection are required, such as mechanical engineering, the automotive industry or other technical applications.
