Nut DIN 934 M12 plastic PA6.6 natural

Product detailed description

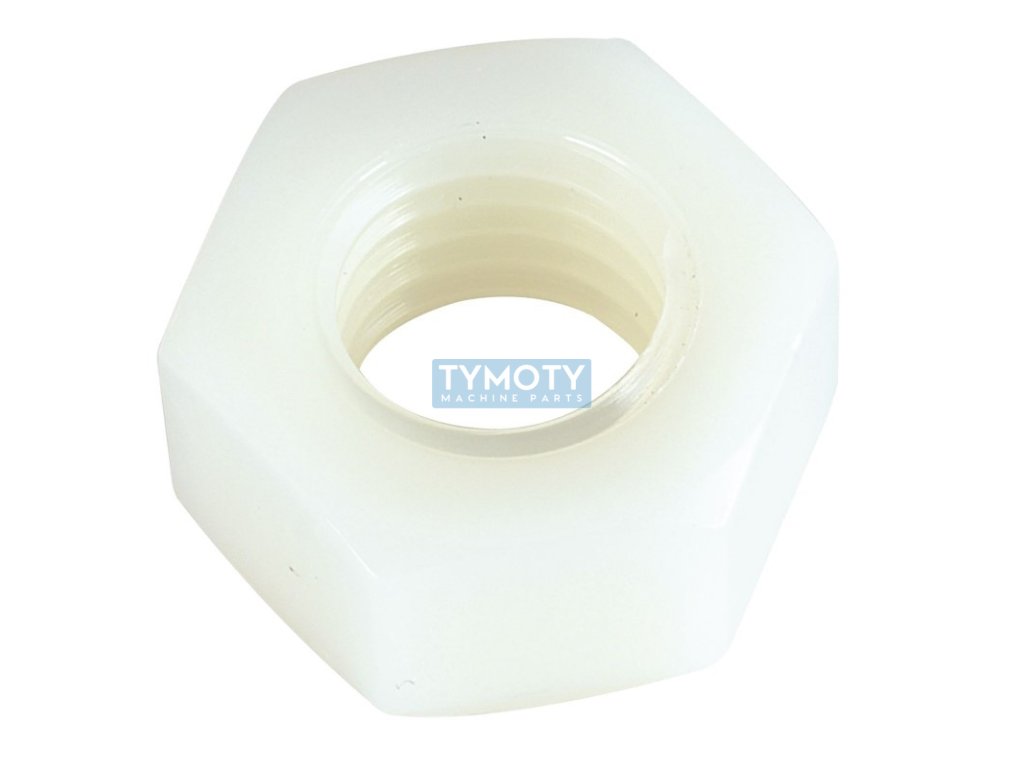

The DIN 934 M12 nut made of PA6.6 plastic in natural finish is designed for standardized screw connections with metric threads in mechanical structures. This hexagonal nut meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and reliability in various applications.

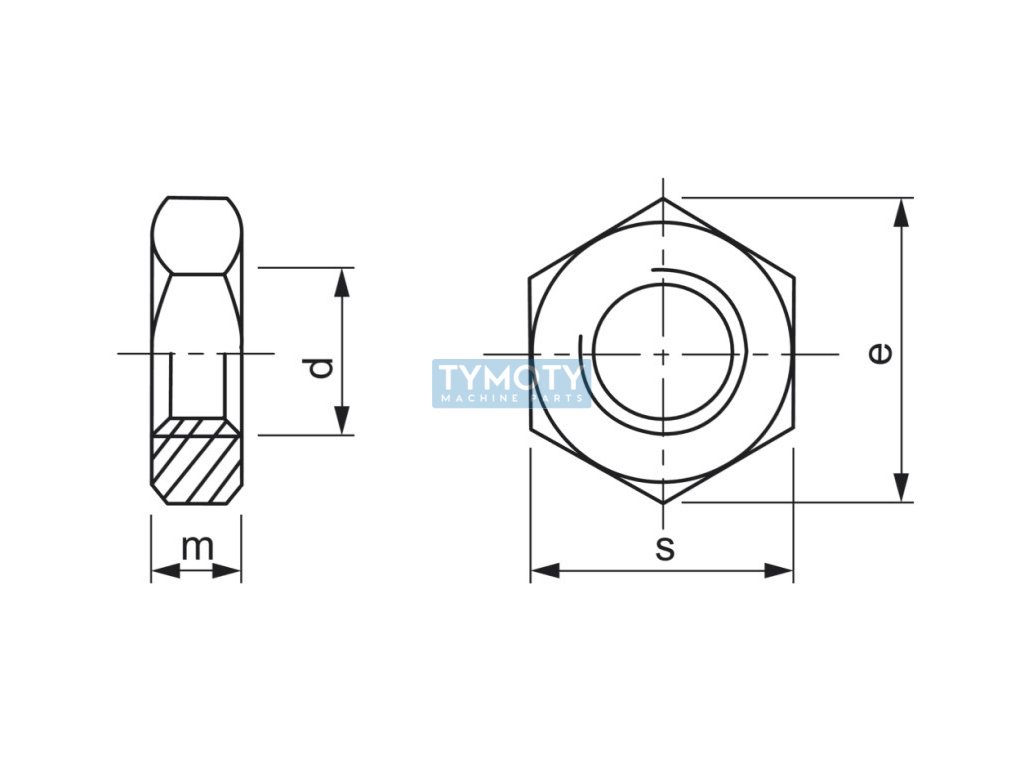

The nut has a metric thread with a diameter of M12 and a pitch of 1.75 mm, which is standard for this type of thread. The height of the nut is 10 mm, the width between the surfaces (s) is 19 mm and the distance between the opposite peaks (e) is 21.1 mm. These dimensions are designed to ensure optimal strength and stability of the connection.

The material used to produce this nut is polyamide 6.6 (PA6.6), which is known for its high strength, wear resistance and good insulating properties. The natural, uncoated finish makes the nut suitable for applications where chemical resistance and low weight are important. The material is also moisture resistant and has good mechanical properties over a wide temperature range.

This nut is ideal for use in environments where corrosion resistance is required and where there are requirements for low component weight. It is suitable for applications in the automotive industry, electrical engineering and other areas where reliability and long service life of the connections are required.
