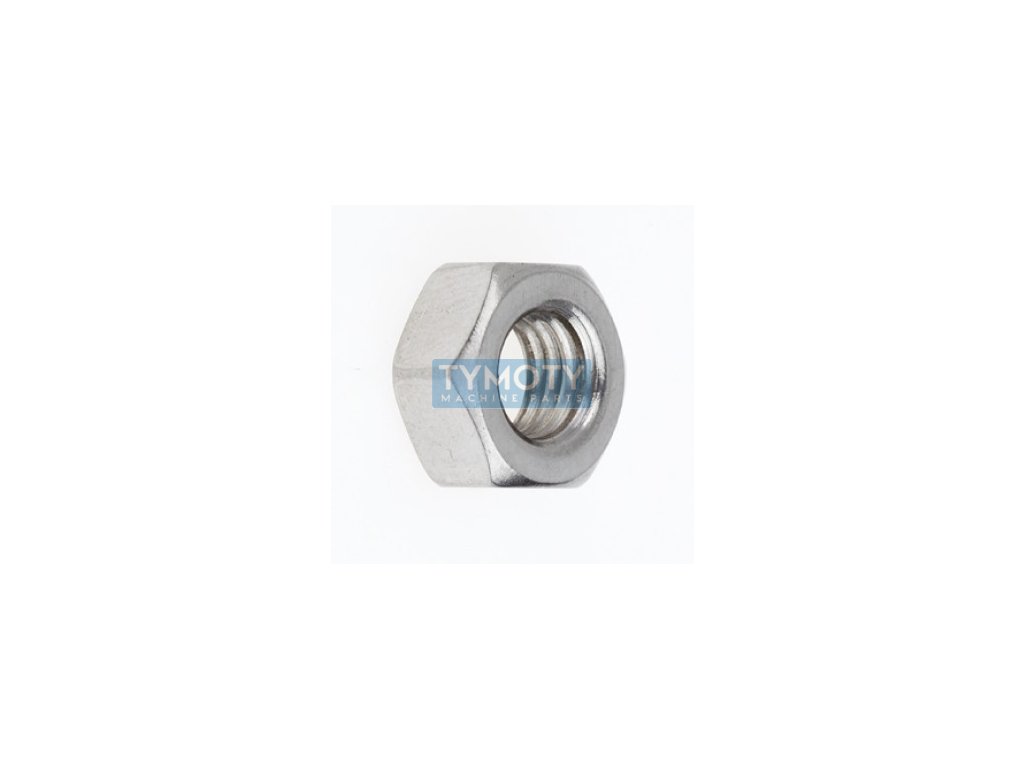

Nut DIN 934 M10x1.25 stainless steel A2

Product detailed description

The DIN 934 M10x1.25 nut made of A2 stainless steel is a precision hexagonal nut designed for standardized screw connections with metric fine thread. This nut meets the standards DIN 934, ČSN 021401 and ISO 4032, which guarantees its compatibility and reliability in mechanical structures.

The nut has an M10 thread diameter with a fine pitch of 1.25 mm, which allows for a precise and strong connection. The height of the nut is 8 mm, the width between the surfaces (s) is 17 mm and the width between the diagonals (e) is 18.9 mm. These dimensions are optimized for effective force distribution and ensuring connection stability.

The material is A2 grade stainless steel, which provides high corrosion resistance, which is ideal for use in environments with higher humidity or chemical exposure. The nut has no surface treatment, which is common for stainless steel materials, as their natural properties provide sufficient protection.

This nut is suitable for applications where high precision and reliability of connections are required, such as mechanical engineering, the automotive industry or other technical equipment where corrosion resistance and mechanical properties are important.
