Nut DIN 934 M10 stainless steel A2

Product detailed description

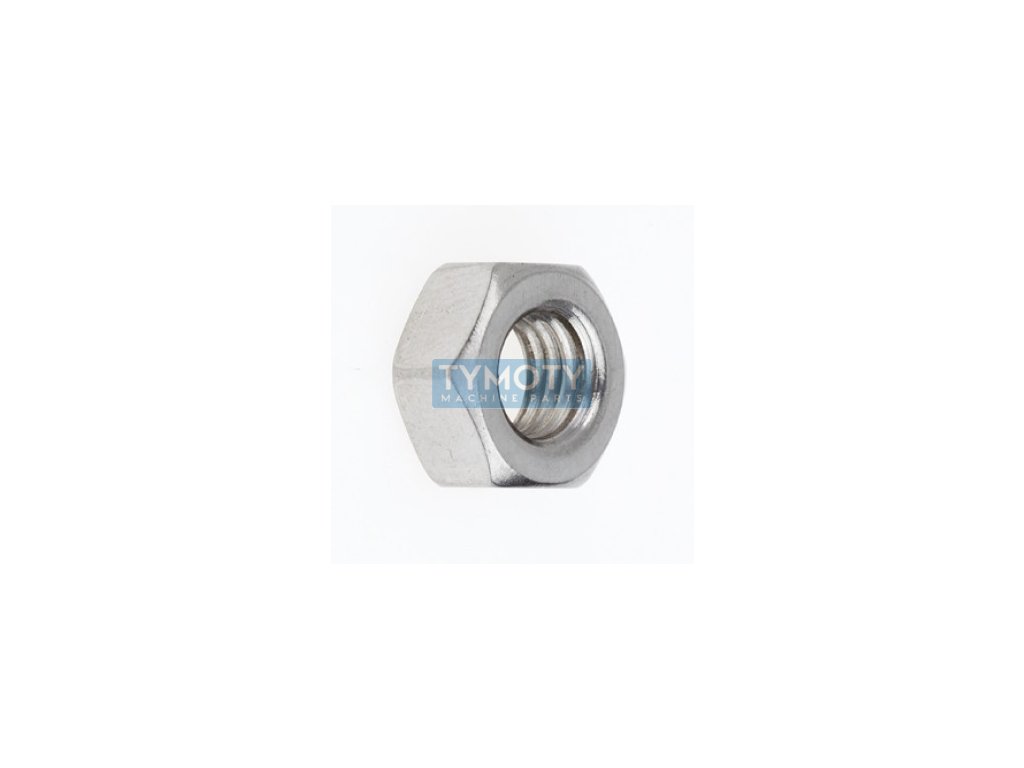

The DIN 934 M10 nut made of A2 stainless steel is a precision hexagonal nut designed for applications in mechanical structures where a reliable and durable connection is required. This nut is manufactured according to DIN 934, ČSN 021401 and ISO 4032 standards, which guarantees its compatibility with standardized bolted joints with metric threads.

The nut has a metric thread with a diameter of M10 and a pitch of 1.50 mm, which is standard for this type of thread and allows it to be used in a wide range of applications. The height of the nut is 8 mm, the width between the surfaces (s) is 17 mm and the width between the diagonals (e) is 18.9 mm. These dimensions are important for the correct installation and tightening of the nut using the appropriate tool.

The material from which the nut is made is stainless steel grade A2. This steel is known for its resistance to corrosion, which is especially important in environments with high humidity or in outdoor applications. The strength class A2 guarantees sufficient mechanical strength for common industrial and construction applications. The nut has no additional surface treatment, which is typical of stainless steel materials that naturally resist corrosion.

This nut is ideal for use in applications where high reliability and resistance to external influences are required, such as structures in the food industry, the chemical industry or in outdoor buildings. Its precise dimensions and processing quality guarantee easy assembly and a long service life of the connection.
