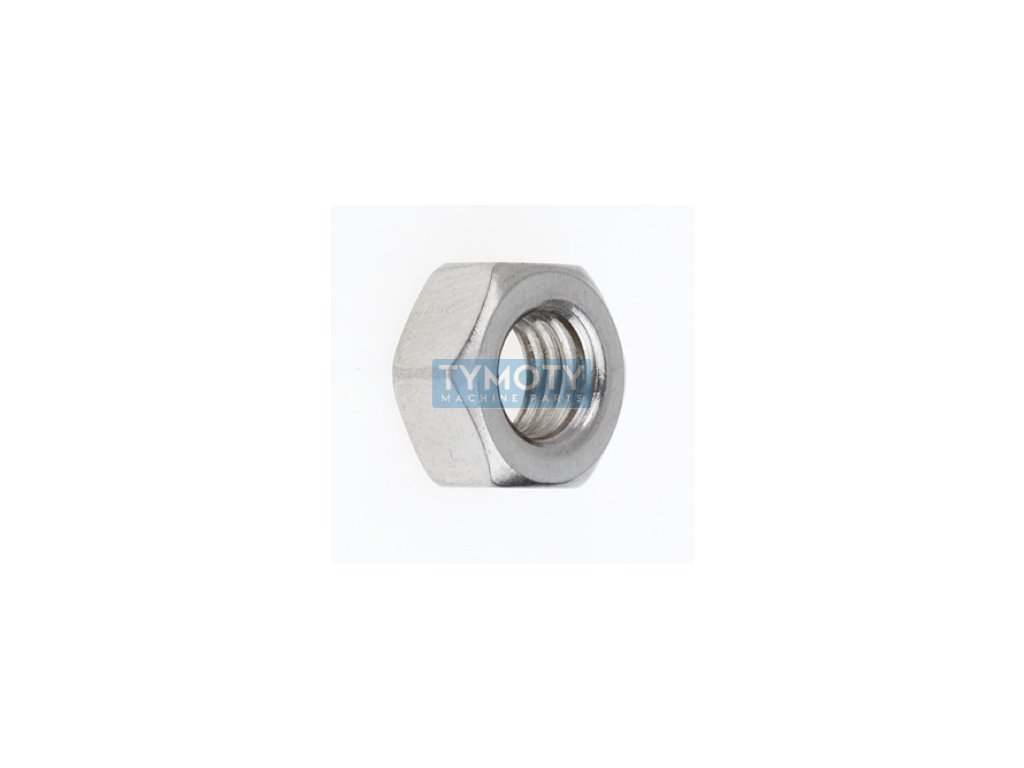

Nut DIN 934 M1.6 stainless steel A2

Product detailed description

The DIN 934 M1.6 nut made of A2 stainless steel is a precision hexagonal nut designed for standardized bolted connections with metric threads. This nut is manufactured in accordance with DIN 934, ČSN 021401 and ISO 4032 standards, which guarantees its compatibility and reliability in mechanical structures.

The nut has a metric thread with a diameter of M1.6 and a pitch of 0.35 mm. Its height is 1.3 mm, the width between the surfaces (s) is 3.2 mm and the width between the diagonals (e) is 3.41 mm. These dimensions are precisely defined to ensure optimal connection with the corresponding bolts.

The material used to manufacture this nut is A2 grade stainless steel, which provides good corrosion resistance and is suitable for use in various environments, including humid and slightly aggressive conditions. The nut has no additional surface treatment, which is typical of stainless steel components that rely on the natural resistance of the material.

This nut is part of the hex nut family and is ideal for applications where high precision and reliability of connections are required. It is suitable for use in various industries including mechanical engineering, construction and equipment manufacturing.
