NTN 6201 deep groove ball bearing

Product detailed description

NTN 6201 ball bearing is a high-quality component designed for a wide range of applications in engineering and industry. This bearing is manufactured by the renowned Japanese manufacturer NTN, which is known for its precise manufacturing and product reliability.

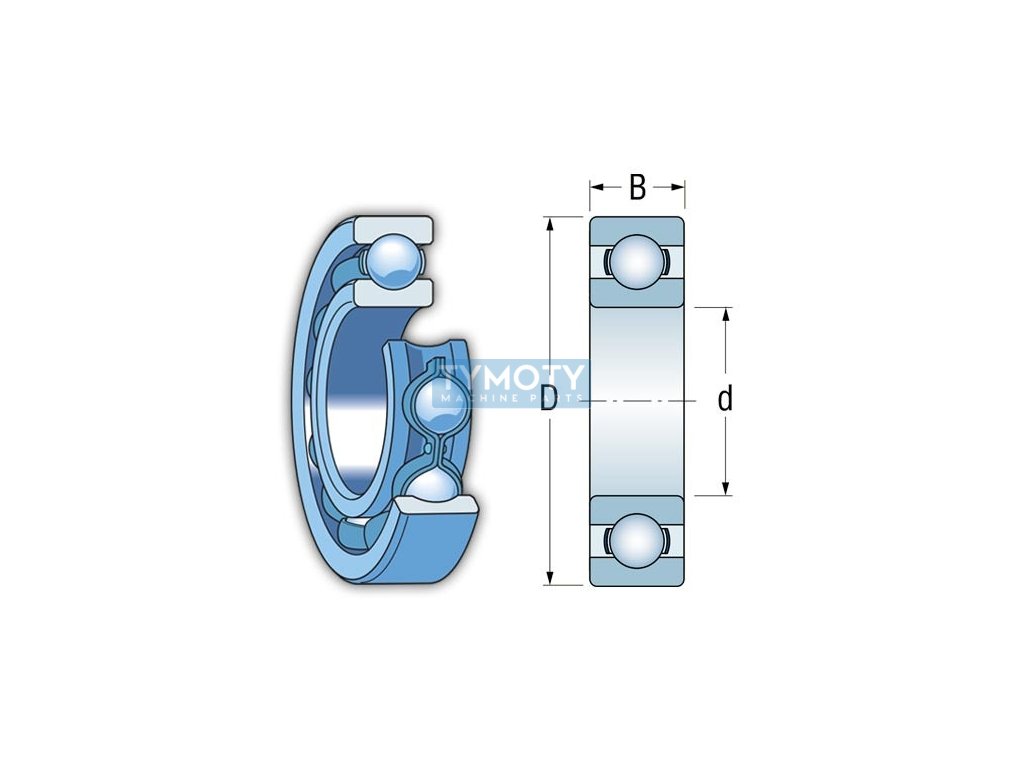

The bearing has an inner diameter of 12 mm, an outer diameter of 32 mm and a width of 10 mm, which makes it suitable for various design solutions where compact dimensions and high efficiency are required. Its design is based on the principle of a deep groove ball bearing, which ensures effective transmission of axial and radial loads while maintaining a low level of friction.

The outer ring of the bearing is without a flange or groove, which allows easy assembly and disassembly in various applications. The hole profile is cylindrical, which is a standard shape for this type of bearing, and ensures precise seating on the shaft. The bearing is made of high-quality steel, which provides high wear resistance and long service life even under difficult operating conditions.

The operating temperature range of the bearing is from -40 °C to +120 °C, which allows it to be used in various climatic conditions and applications with different temperature requirements. The bearing is equipped with a steel cage, which ensures stability and uniform distribution of balls during operation.

This bearing is supplied without a seal, which is suitable for applications where protection against contamination is not required or where an external seal is provided. The normal clearance of the bearing ensures optimal operation at standard loads and speeds.

The NTN 6201 ball bearing is an ideal choice for applications where high reliability and performance are required while maintaining compact dimensions and low weight.
