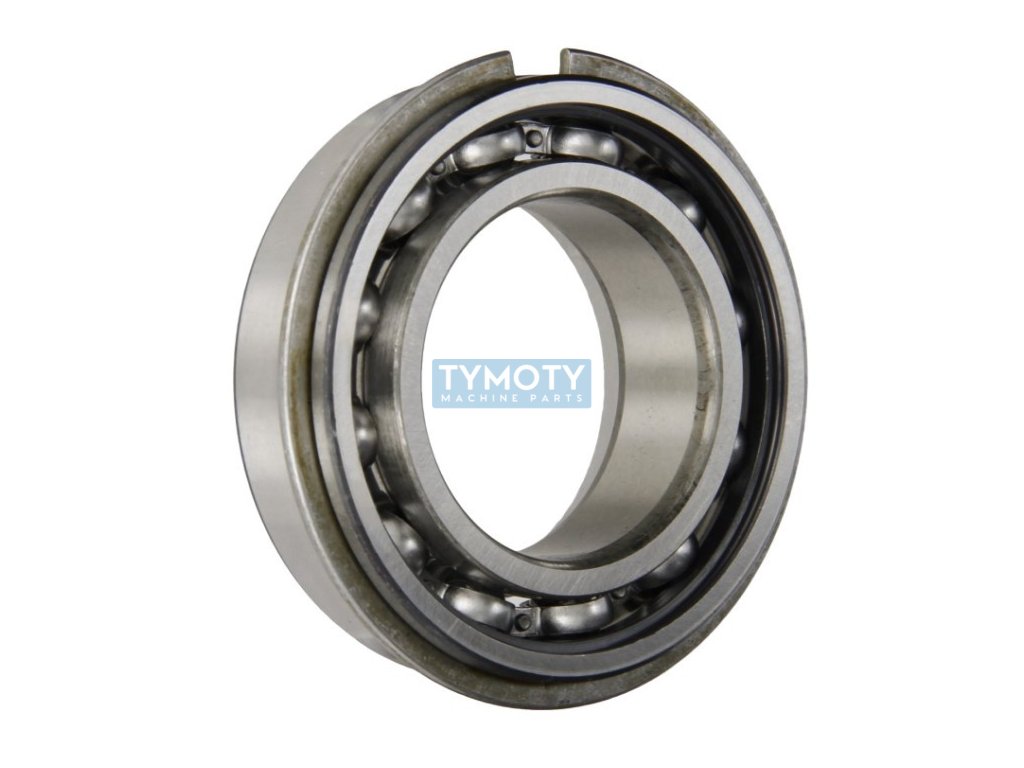

NTN 6013 NR deep groove ball bearing

Product detailed description

NTN 6013 NR is a single row ball bearing manufactured by the renowned Japanese manufacturer NTN. This bearing is designed with an emphasis on high precision and reliability, which makes it suitable for use in various industrial applications.

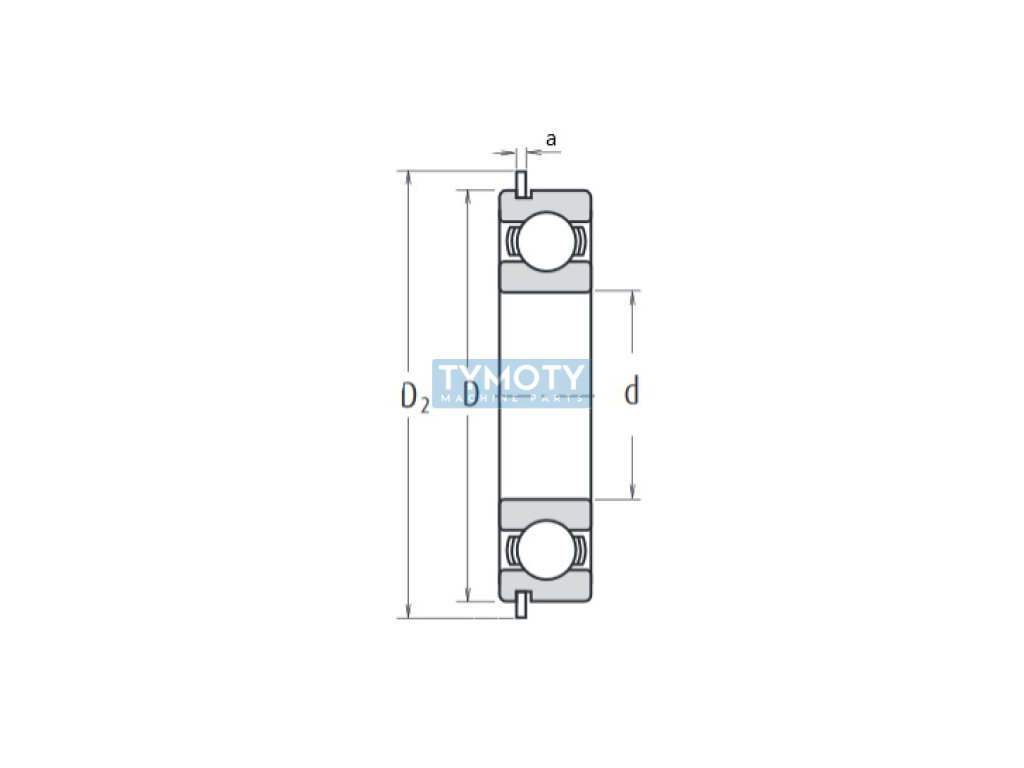

The bearing has an inner diameter of 65 mm, an outer diameter of 100 mm and a width of 18 mm. It is made of standard steel for rolling bearings, which ensures optimal strength and wear resistance. The internal structure of the bearing includes a cylindrical bore and is equipped with a pressed steel cage, which effectively holds the rolling elements in place.

The outer ring of the bearing is equipped with a groove with a retaining ring, which allows easy assembly and disassembly and increases the stability of the bearing in the application. The bearing is not equipped with a seal, which means that it is uncovered and suitable for applications where protection against dust and dirt is not required.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows it to be used in various climatic conditions. The bearing has normal radial clearance and meets the running accuracy class P0/PN, respectively. ABEC 1, which ensures smooth and quiet operation.

With a weight of 0.485 kg, the bearing is lightweight, which contributes to reducing the overall weight of the equipment in which it is installed. NTN 6013 NR is an ideal choice for applications requiring high precision and reliability, while its design features guarantee a long service life and minimal maintenance.
