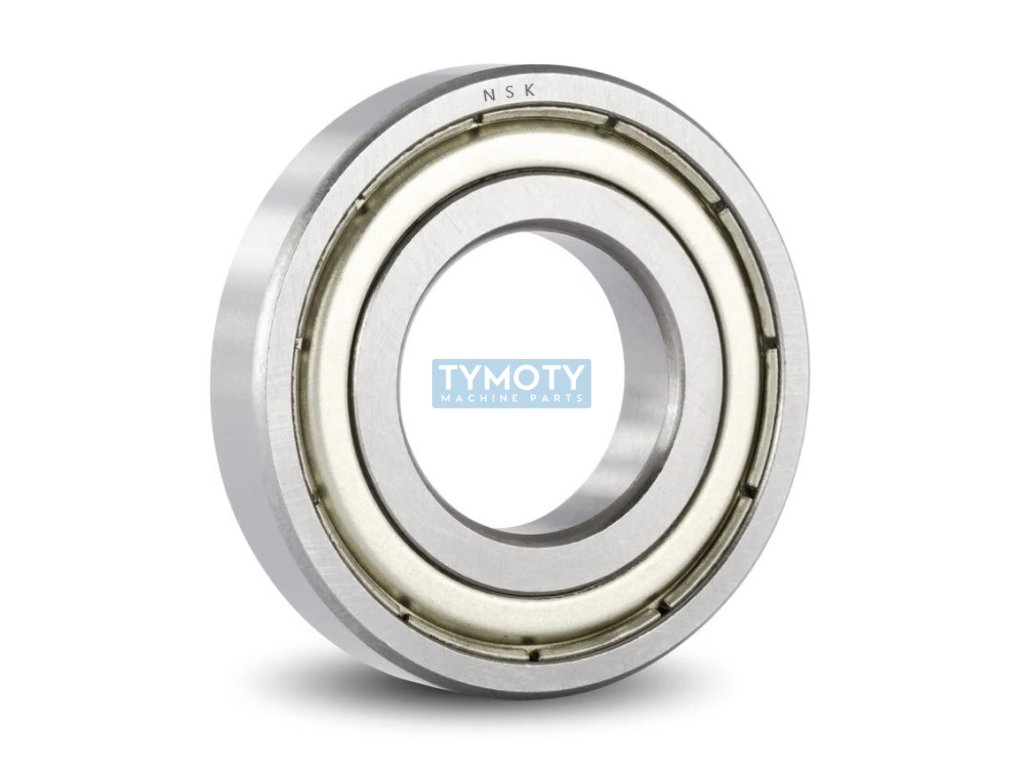

NSK 6305 ZZC4 deep groove ball bearing

Product detailed description

The NSK 6305 ZZC4 ball bearing is precisely designed for applications requiring high reliability and efficiency. This single row ball bearing is made of high-quality standard rolling bearing steel, which guarantees its long life and wear resistance. The bearing has an inner diameter of 25 mm, an outer diameter of 62 mm and a width of 17 mm, which makes it suitable for a wide range of technical applications.

The bearing is equipped with a double-sided sheet metal cover, which provides protection against dirt and contamination, thereby extending its service life. The internal clearance of the bearing is category C4, which means that it has a greatly increased radial clearance, making it suitable for applications with higher temperature differences or where greater movement between components is required.

The steel cage, which is pressed, ensures a firm seat of the balls and contributes to the overall stability of the bearing. The bearing is designed to operate in a temperature range from -20 °C to +120 °C, making it suitable for various industrial environments. The running accuracy is in class P0/PN, or ABEC 1, which corresponds to the basic level of accuracy for common applications.

The outer ring of the bearing is without a flange or groove, which allows for easy assembly and disassembly. The bearing is not insulated against the passage of electric current, which is important to consider when using it in electrical applications. The total weight of the bearing is 0.235 kg, which is optimal for its size and design. The manufacturer NSK, known for its quality and innovation, guarantees that this bearing will meet even the most demanding requirements for performance and reliability.
