NSK 6002 ZZC3 deep groove ball bearing

Product detailed description

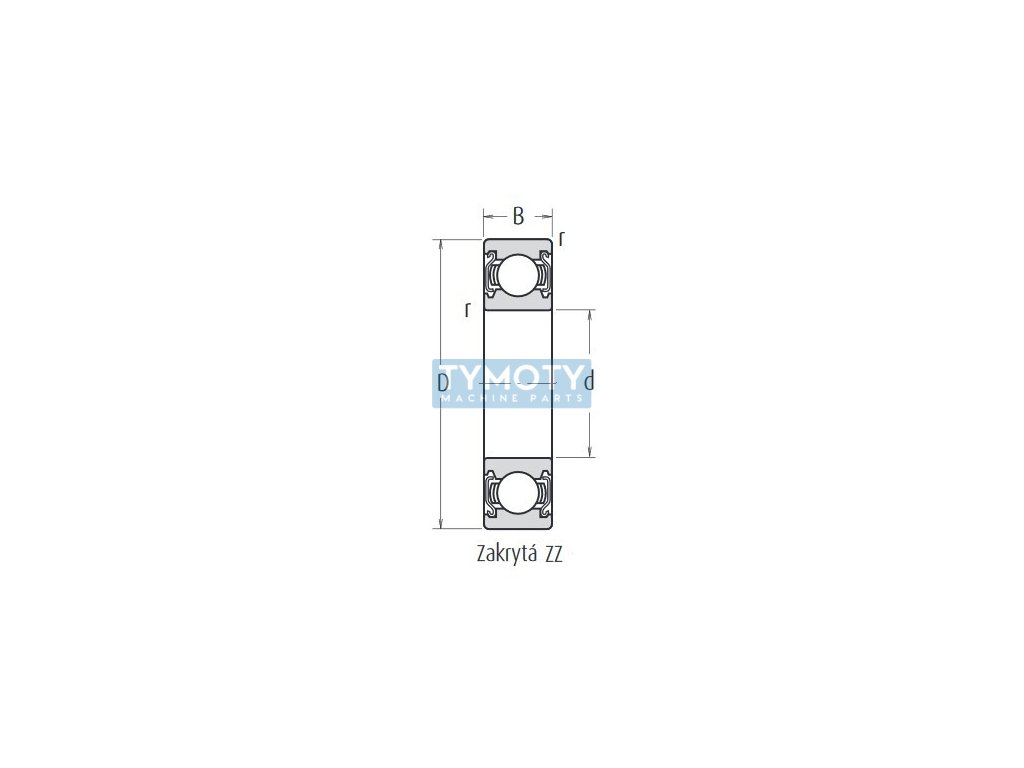

NSK 6002 ZZC3 is a single row deep groove ball bearing. It is characterized by compact dimensions with an inner diameter of 15 mm, an outer diameter of 32 mm and a width of 9 mm. The bearing is made of high-quality standard steel for rolling bearings, which ensures its long service life and reliability in various applications.

The bearing is equipped with a double-sided sheet metal cover, which provides protection against dirt and contamination, thereby extending its service life and reducing the need for maintenance. The pressed steel cage ensures the correct arrangement of the rolling elements and contributes to the optimal operation of the bearing. The hole profile is cylindrical, which allows easy installation on the shaft.

NSK 6002 ZZC3 is designed to operate in a temperature range from -20 °C to +120 °C, which allows its use in a wide range of industrial applications. The bearing has a slightly increased radial clearance (C3), which is suitable for applications where thermal expansion occurs or where a higher tolerance to axial and radial loads is required.

The running accuracy is classified in class P0/PN, or ABEC 1, which is the standard accuracy level for common industrial applications. The bearing is not equipped with insulation against the passage of electrical current, which is important to consider in applications where electrical overload may occur.

With a weight of 0.03 kg, the NSK 6002 ZZC3 is lightweight and suitable for applications where minimizing the weight of components is important. It is ideal for use in various industries, including the automotive, mechanical engineering and electrical engineering industries, where high speeds and low friction are required.
