NKE 6202-2RS2-C3 deep groove ball bearing

Product detailed description

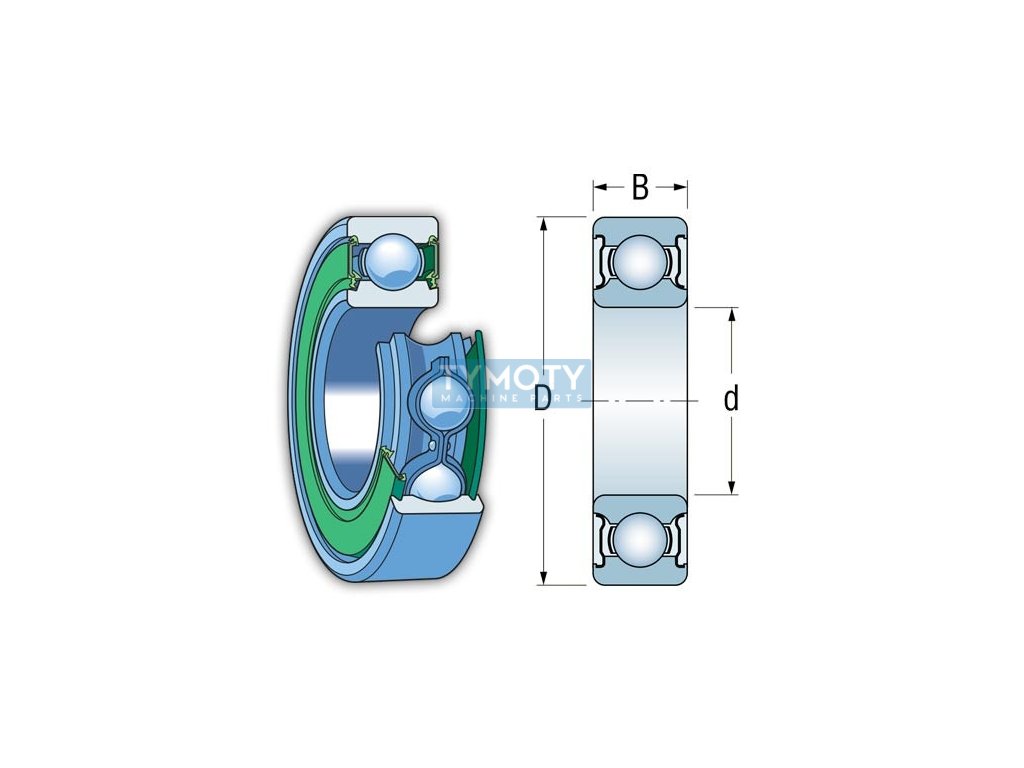

NKE 6202-2RS2-C3 is a single row ball bearing that is characterized by high precision and reliability. This bearing is made of high-quality standard steel for rolling bearings, which ensures its long service life and resistance to wear. With an inner diameter of 15 mm, an outer diameter of 35 mm and a width of 11 mm, this bearing is ideal for applications where compact dimensions and high performance are required.

The bearing is equipped with a double-sided rubber contact seal, which provides excellent protection against dust and dirt, thus extending its service life. The pressed steel cage ensures correct ball guidance and contributes to the overall robustness of the structure. The internal radial clearance is slightly increased (C3), which allows better adaptation to thermal expansion and load changes.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows its use in various industrial applications where temperature fluctuations are common. The running accuracy is in class P0/PN, respectively. ABEC 1, which guarantees reliable and quiet operation in a wide range of applications.

The NKE 6202-2RS2-C3 bearing is without a flange or groove on the outer ring and has a cylindrical bore, which makes it easier to mount and dismount. With a weight of 0.044 kg, it is lightweight and suitable for applications where low component weight is important. This component is not insulated against the passage of electric current, which is important to consider when using it in electrical equipment.
