Nachi 6305 C3 deep groove ball bearing

Product detailed description

Nachi 6305 C3 is a deep groove ball bearing designed for a wide range of industrial applications. This bearing is manufactured by the renowned Japanese manufacturer Nachi, known for its precision and reliability in the field of bearings.

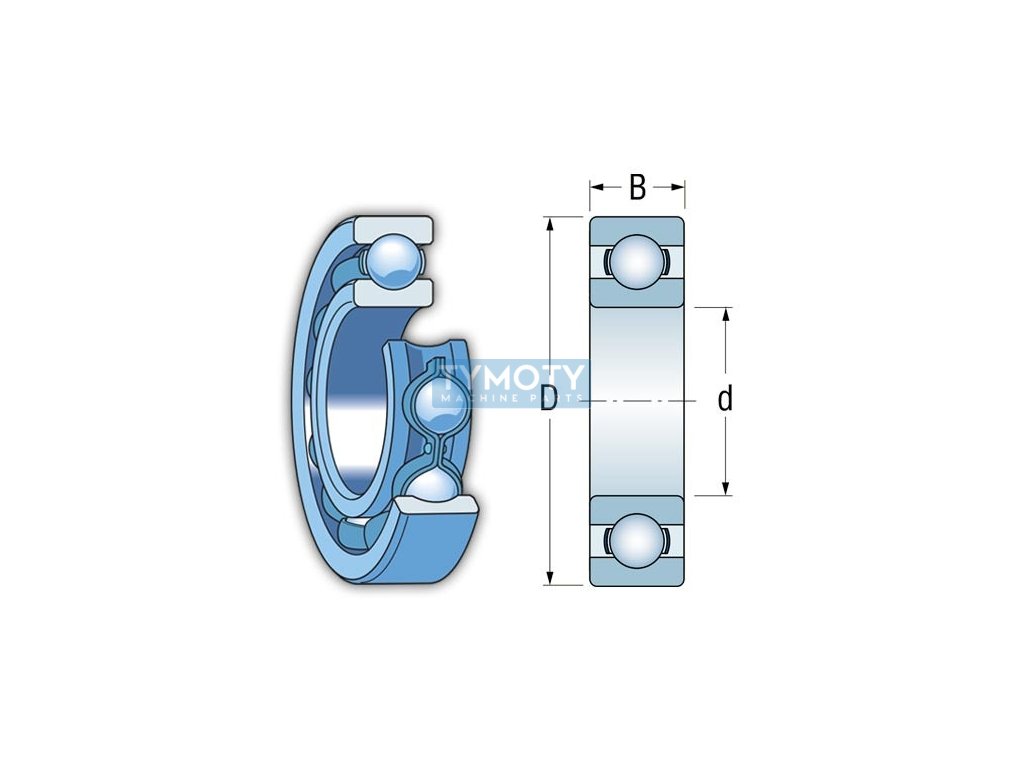

The bearing has an inner diameter (d) of 25 mm, an outer diameter (D) of 62 mm and a width (B) of 17 mm. These dimensions are standard for 6305 type bearings, which allows it to be easily integrated into existing systems and equipment. The bearing is made of high-quality steel, which ensures its long service life and resistance to mechanical wear.

The bearing bore profile is cylindrical, which is common for this type of bearing and allows for easy mounting on the shaft. The outer ring of the bearing is without a flange or groove, which simplifies its use in applications where additional fastening is not required.

The bearing is equipped with a steel cage, which ensures the correct arrangement of the balls and minimizes friction, contributing to smooth operation and reducing energy losses. Nachi 6305 C3 is without seals, which means that it is suitable for applications where protection against dust and moisture is not required.

The bearing has a slightly increased C3 clearance, which allows it to be used in applications with higher operating temperatures or where thermal expansion occurs. The operating temperature range of the bearing is from -20 °C to +120 °C, making it suitable for various climatic conditions and temperature environments.

Nachi 6305 C3 is an ideal choice for applications where high precision, reliability and wear resistance are required, such as electric motors, gearboxes and other rotating equipment.
