Nachi 6305-2NSE9CM (2RS) deep groove ball bearing

Product detailed description

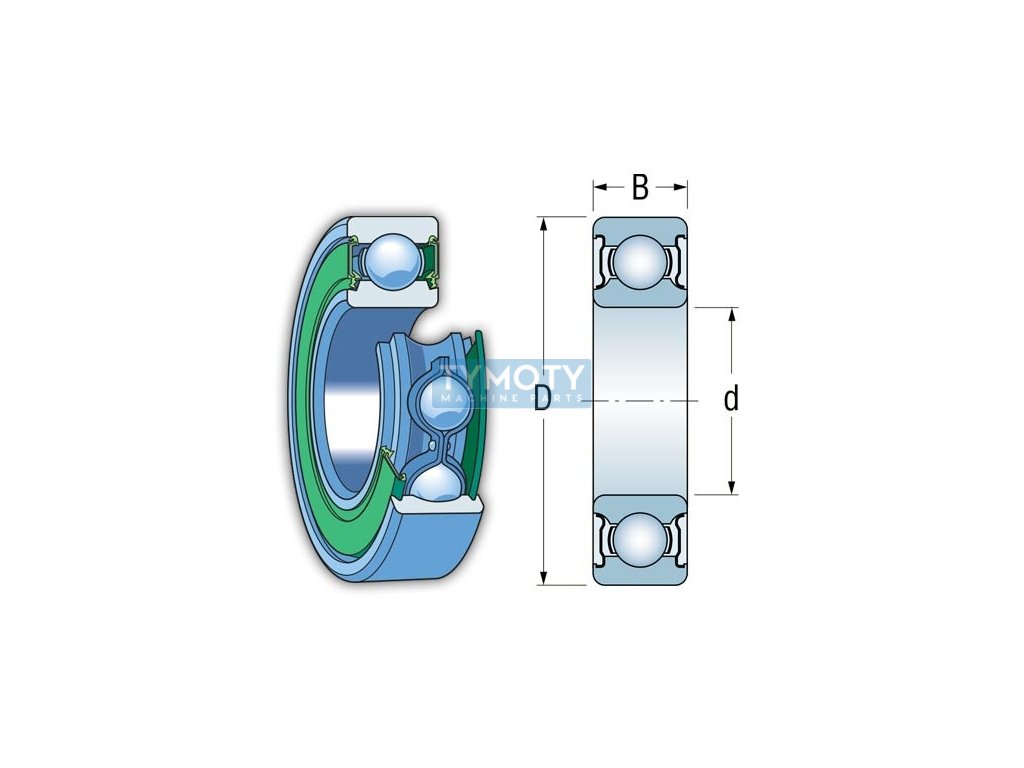

Nachi 6305-2NSE9CM (2RS) is a single row ball bearing designed for a wide range of industrial applications. This bearing is made of high quality standard steel for rolling bearings, which guarantees its long service life and reliability in operation. The bearing has an inner diameter of 25 mm, an outer diameter of 62 mm and a width of 17 mm, which are standard dimensions for this type of bearing.

The bearing is equipped with a double-sided rubber contact seal, which provides effective protection against dust and dirt, increasing its resistance to external influences. The seal also contributes to maintaining the lubricant inside the bearing, thereby extending the maintenance interval. The internal radial clearance is normal, but with narrow tolerances, which ensures optimal operating accuracy and reduces vibrations.

The bearing is equipped with a pressed steel cage, which provides high strength and stability in operation. The hole profile is cylindrical, which allows easy mounting on the shaft. The bearing belongs to the accuracy class P0/PN (resp. ABEC 1), which means that it meets the basic accuracy requirements for common applications.

The operating temperature range of the bearing is from -20 °C to +130 °C, which allows its use in various climatic conditions. The bearing is not equipped with insulation against the passage of electric current, which is important to consider in applications where electrical contact may occur.

The total weight of the bearing is 0.22 kg, which is in accordance with its design parameters. Nachi 6305-2NSE9CM (2RS) is an ideal choice for applications where high reliability and durability are required in combination with easy maintenance.
