Nachi 6202-2NKE9CM (2RZ) deep groove ball bearing

Product detailed description

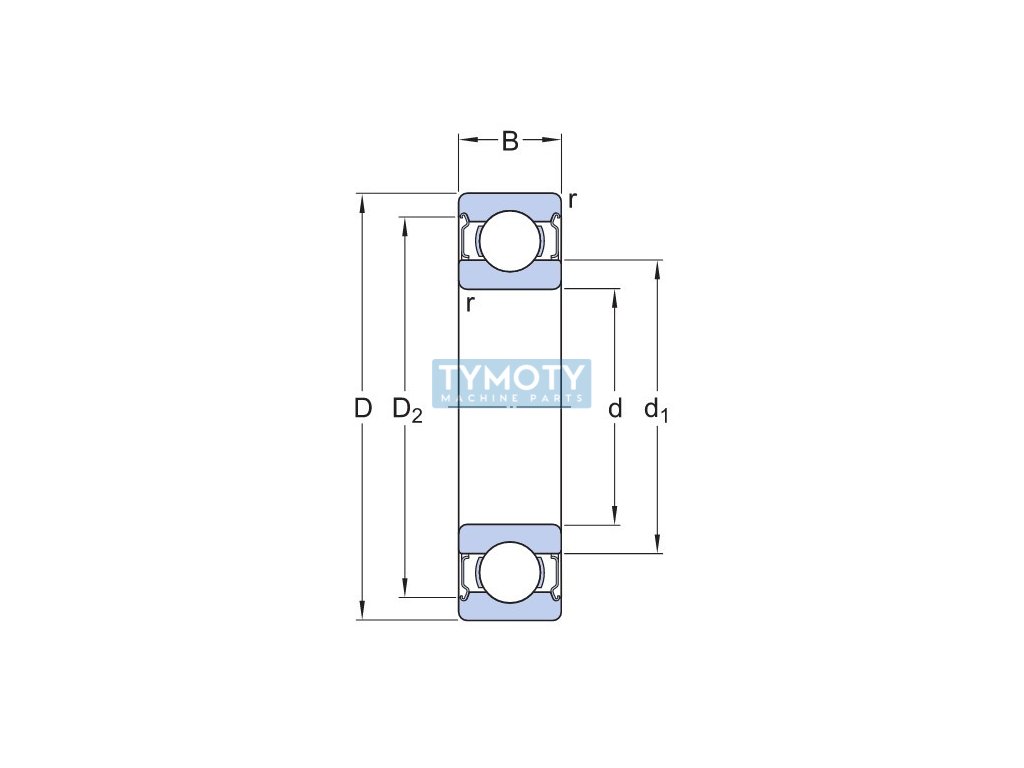

Nachi 6202-2NKE9CM (2RZ) is a precision single row ball bearing made in Japan, designed for various industrial applications. The bearing has an inner diameter of 15 mm, an outer diameter of 35 mm and a width of 11 mm, which makes it suitable for compact designs where high precision and reliability are required.

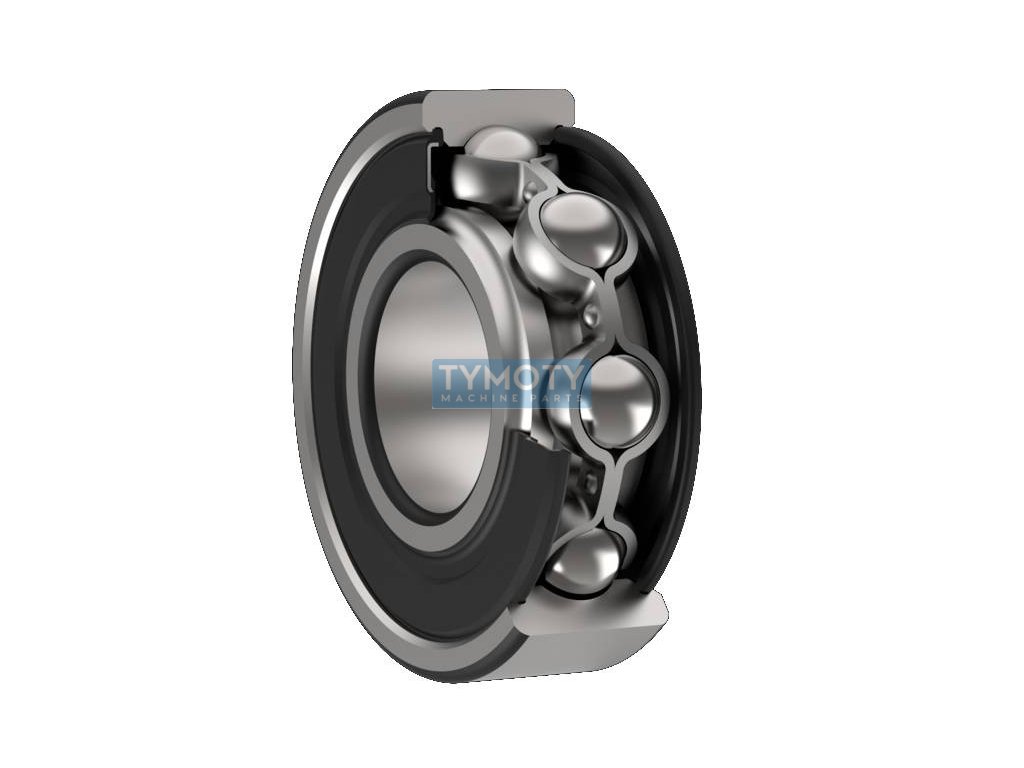

The bearing is made of standard steel for rolling bearings, which ensures long service life and wear resistance. The rolling elements are also made of this steel, which contributes to the overall robustness and reliability of the component. The bearing is equipped with a pressed steel cage, which ensures proper ball guidance and minimizes friction.

This model is equipped with a double-sided non-contact rubber seal, which protects the internal parts of the bearing from dust and moisture, while reducing friction and enabling smooth operation. The seal is designed to not come into contact with rotating parts, which extends its service life and reduces the need for maintenance.

The bearing has normal radial clearance with narrow tolerances, which means it is optimized for applications where precise motion control and minimal vibration are required. The running accuracy is in class P0/PN, which corresponds to ABEC 1, and is suitable for standard applications where extreme accuracy requirements are not made.

The operating temperature range of the bearing is from -20 °C to +120 °C, which allows it to be used in various climatic conditions. The bearing is not insulated against the passage of electric current, which is important to consider when installing it in electrical equipment.

The total weight of the bearing is 0.05 kg, which is advantageous for applications where low component weight is important. Thanks to its features, Nachi 6202-2NKE9CM (2RZ) is an ideal choice for various industrial applications that require reliable and precise bearings.
