Nachi 6007-2NSE9C3 (2RS C3) deep groove ball bearing

Product detailed description

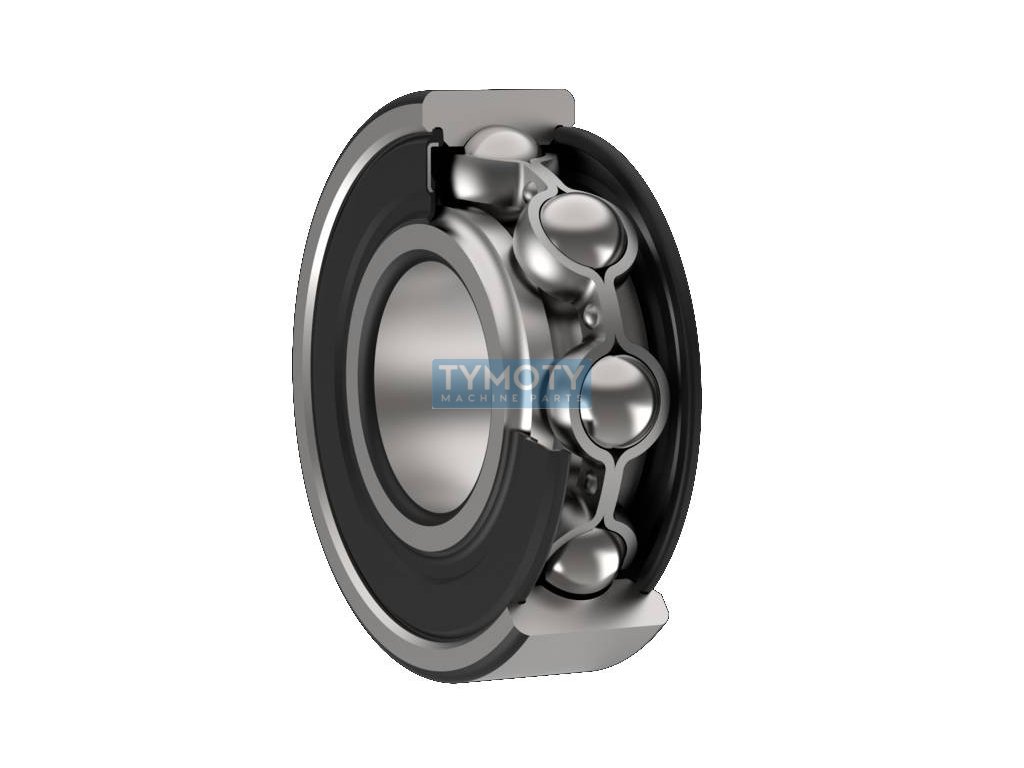

Nachi 6007-2NSE9C3 is a single row deep groove ball bearing manufactured by the Japanese company Nachi. This bearing is designed for applications where high precision and reliability are required. It has an inner diameter of 35 mm, an outer diameter of 62 mm and a width of 14 mm, making it suitable for various industrial applications.

The bearing is made of standard rolling bearing steel, which ensures high wear resistance and long service life. The rolling elements are also made of steel, which contributes to the overall robustness and reliability of the bearing. The bearing is equipped with a pressed steel cage, which ensures stable ball guidance and minimizes friction.

This bearing is equipped with a double-sided rubber contact seal, which effectively protects the internal components from dirt and moisture, thereby extending its service life. The seal also allows operation in a temperature range from -20 °C to +130 °C, making it a suitable choice for various climatic conditions.

The bearing has a slightly increased radial clearance designated as C3, which means that it is able to handle higher thermal expansions and dynamic loads. The running accuracy is in accordance with the accuracy class P0/PN, respectively. ABEC 1, which guarantees reliable and smooth operation in common applications.

The outer ring of the bearing is without a flange or groove, and the bore is of a cylindrical profile, which allows easy installation in standard bearing housings. The bearing is not insulated against the passage of electrical current, which is important to consider in applications where electrical discharge could occur. Weighing 0.16 kg, the Nachi 6007-2NSE9C3 is a compact and lightweight bearing that offers an excellent performance-to-size ratio, making it ideal for a wide range of industrial applications where high reliability and long service life are required.
