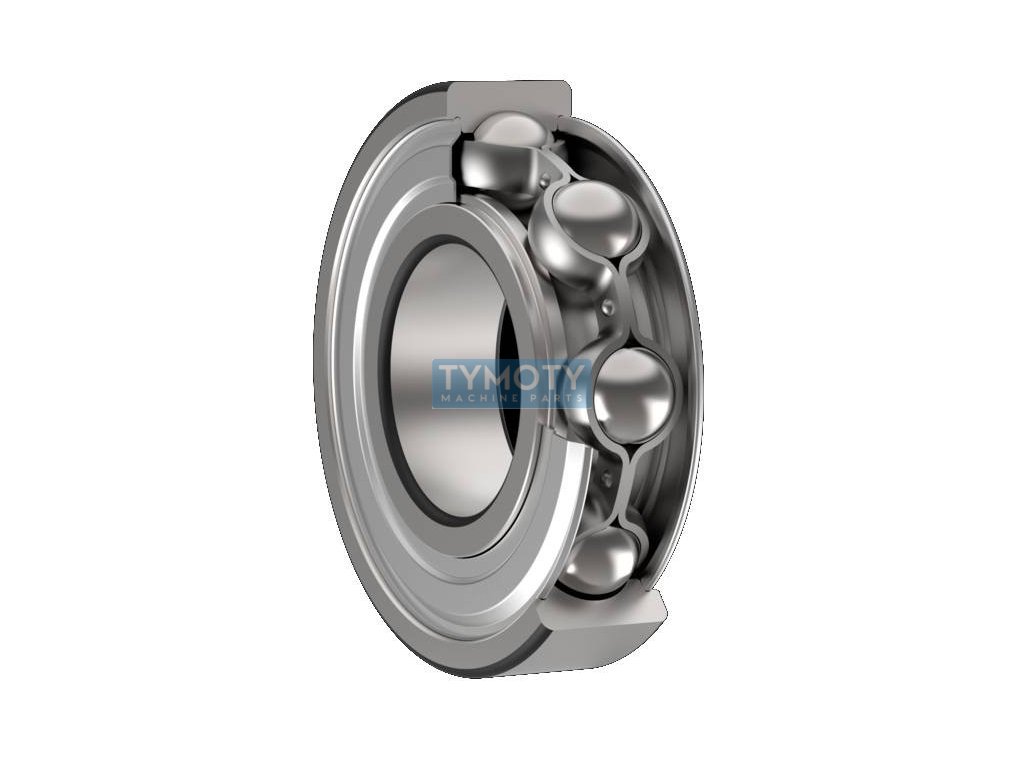

Nachi 6001 ZZEC3 (2Z C3) deep groove ball bearing

Product detailed description

Nachi 6001 ZZEC3 is a single row deep groove ball bearing designed for a wide range of industrial applications. The bearing has an inner diameter of 12 mm, an outer diameter of 28 mm and a width of 8 mm. It is made of high-quality standard steel for rolling bearings, which ensures its long service life and reliability.

This model is equipped with a double-sided sheet metal cover that provides protection against dust and other contaminants, thus extending the service life of the bearing and reducing the need for maintenance. The bearing has a pressed steel cage that ensures proper ball guidance and reduces friction.

The Nachi 6001 ZZEC3 bearing is designed with a slightly increased radial clearance C3, which allows it to be used in applications with higher temperatures and speeds. The operating temperature range of the bearing is from -40 °C to +120 °C, which allows its use in various climatic conditions.

The accuracy of the bearing corresponds to the accuracy class P0/PN, or ABEC 1, which is the standard accuracy for common applications. The bearing does not have insulation against the passage of electric current, which is important to consider when using it in electrical equipment.

The total weight of the bearing is 0.02 kg, which contributes to its easy handling and installation. The bearing is suitable for applications where high reliability and low maintenance are required, such as electric motors, gearboxes and various industrial machines. The manufacturer Nachi is known for its precise production and high quality of products, which guarantees that the Nachi 6001 ZZEC3 bearing will serve reliably in demanding conditions.
