Multi V-belt 5-5V 1180 optibelt KB Red Power 3
Code: 249723
Product detailed description

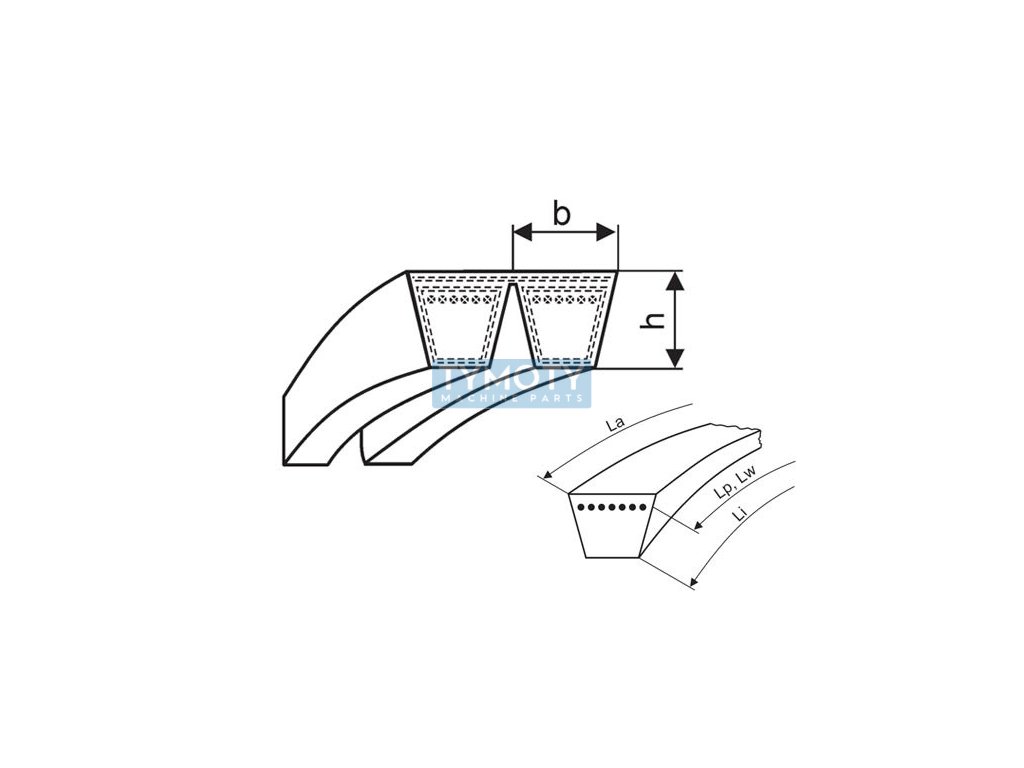

V-belt multiple 5-15J 2997 La - 5-5V 1180 optibelt KB RED POWER 3 - the right solution for heavy loads. Favorable performance/price ratio. The multiple coated belt 5-5V 1180 is a belt according to US standard ISO 8419. The belt with a 5V profile is suitable for industrial and agricultural use - where it is necessary to transmit extreme power. The belt width is 75 mm and height = 15.1 mm. External length = 2997 mm and internal length = 2926 mm. Optibelt is a top manufacturer of belts made of high-quality materials. - certified supplier of belts and pulleys.Additional parameters
| Category: | Belts > wedge multiple > according to US 5V/15J > 5-5V / 5-15J |
|---|---|
| Weight: | 3.836 kg |
| EAN: | 4014486182637 |
| Height H (mm): | 15,1 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 171 |
| Number of teeth (splines): | 5 |
| Outer length La (mm): | 2997 |
| Product: | KB RED POWER 3 |
| Profile: | 5V |
| Width B (mm): | 87,5 |
| Číslo výrobce: | 1544957 |
| Řada: | 5V 1180 RP |
