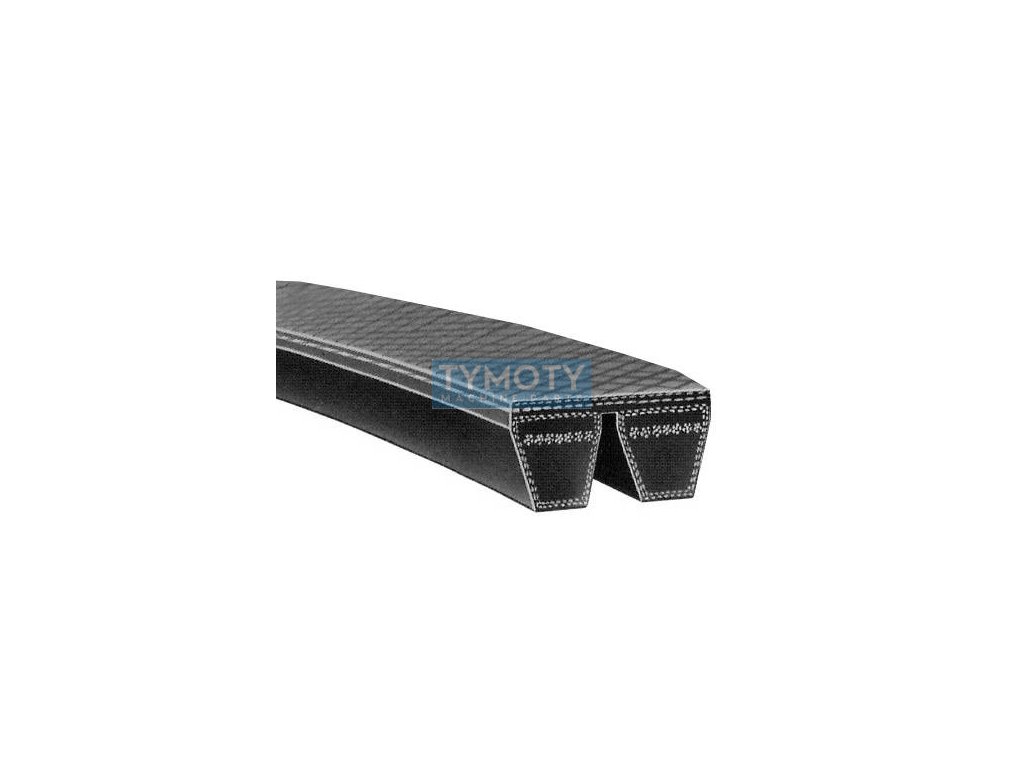

Multi V-belt 2-HB 2300 La (B 91) Rubena UniBP
Code: 247413
Product detailed description
V-belt multiple 2-HB 2300 La (B 91) Rubena UniBP. It is a multi-V-belt (multiple) of the HB 2300 profile for maximum load. Belt width = 33 mm and height = 15 mm. Length Lw=La, therefore 2300 mm. Precise production on modern machines ensures a long service life. Thousands of types in stock for immediate dispatch.Additional parameters
| Category: | Belts > wedge multiple > classic HB (16.5x15) > 2-HB |
|---|---|
| Weight: | 3.772 kg |
| Angle ( ° ): | 40 |
| Calculation length Lw, Lp, mm: | 2300 |
| Height H (mm): | 15 |
| Inner length Li (mm): | 2238 |
| Manufacturer's brand: | Rubena |
| Minimum diameter: | 180 |
| Number of teeth (splines): | 2 |
| Outer length La (mm): | 2300 |
| Product: | Multiple V-belt |
| Profile: | HB |
| Width B (mm): | 33 |
| Řada: | UniBP |
