Multi-ribbed belt 9 PJ 584 (230-J) optibelt RB
Code: 247955
Product detailed description
Multi-V-belt 9 PJ 584 from the manufacturer optibelt, type RB. Also known as a grooved belt, toothed belt or ribbed belt. It meets high demands for power transmission and high speeds. The inch designation is 230-J, where \J\ stands for the profile - equivalent to \PJ\ and 230 is the inch length of the belt. In this case 23 inches = 584 mm. What is not indicated on the belt is the number of ribs. Because the belt is cut from the sleeve, the number of ribs (v-ribs) is necessary. 9 pieces of ribs. The belt has a very long service life and is suitable for small pulley diameters."""Additional parameters
| Category: | Belts > flat ribbed > PJ 2.34 mm > 9 PJ |
|---|---|
| Weight: | 0.047 kg |
| EAN: | 4014486213867 |
| Calculation length Lw, Lp, mm: | 584 |

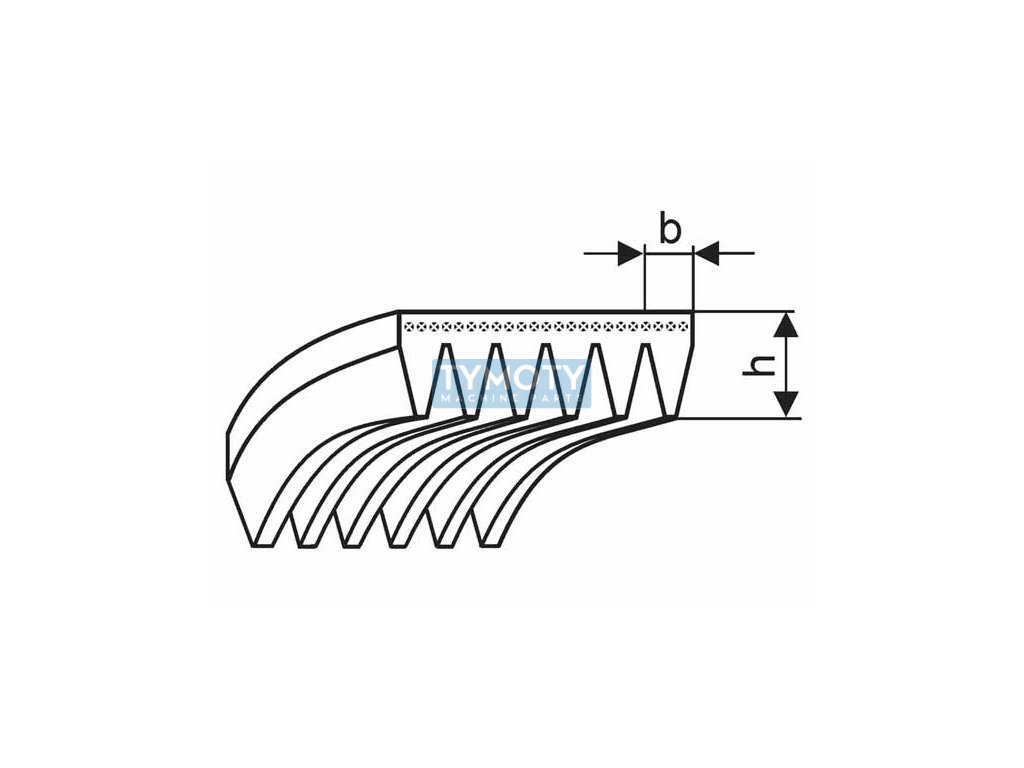

| Height H (mm): | 3,5 |
| Manufacturer's brand: | Optibelt |
| Minimum diameter: | 20 |
| Number of teeth (splines): | 9 |
| Product: | RB |
| Profile: | PJ |
| Spacing t (mm): | 2,34 |
| Width B (mm): | 21,06 |
| Číslo výrobce: | 1713746 |
| Značení: | 230-J |
| Řada: | 9 PJ 584 |
| Typ: | víceklínový žebrový řemen |
